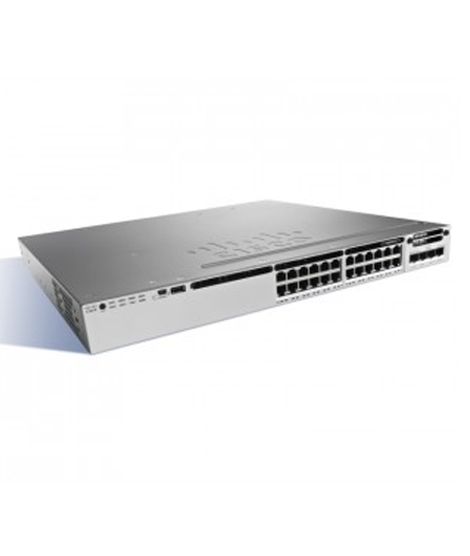

Cisco Catalyst 24-Port Data IP Switch (WS-C3850-24T-E)
Delivery & Return
Share
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
-
FREE RETURN
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country. -
COUNTRY-WIDE SHIPPING
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country. -
EXPRESS DELIVERY
Get your order to your doorstep within 24 hours through iShoppingʼs Express Delivery -
GUARANTEE SAFE CHECKOUT
About this Item
iShopping.pk brings you the best price for Cisco Catalyst 24-Port Data IP Switch (WS-C3850-24T-E) with 1 year official warranty and express shipping all over Pakistan.
Specification:
|
Specification |
|
|
model info: |
WS-C3850-24T-E |
|
enclosure type |
Rack-mountable - 1U |
|
Ports |
24 x 10/100/1000 |
|
Network management Interface |
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
● Management console port: RJ-45-to-DB9 cable for PC connections |
|
|
Available PoE Power |
None |
|
Switching Capacity |
92Gbps |
|
Maximum stacking number |
up to 9 switches with same IOS feature set in same series |
|
Stack Bandwidth |
480Gbps |
|
Forwarding Performance |
68.4Mpps |
|
FNF entries |
24,000 flows |
|
Maximum VLANs IDs |
4000 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
4 G |
|
Flash Memory |
2 G |
|
Wireless |
|
|
Number of AP per switch/stack |
100 |
|
Number of wireless clients per switch/stack |
2000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
up to 20Gbps |
|
Supported Aironet AP series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
|
Network Modules Selection |
● C3850-NM-4-1G: 4 x 1G uplinks network module |
|
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module |
|
|
Stacking cable |
●STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
|
●STACK-T1-1M StackWise stacking cable with a 1.0 m length |
|
|
●STACK-T1-3M StackWise stacking cable with a 3.0 m length |
|
|
Stack Power Cable (recommended) |
●CAB-SPWR-30CM stack power cable with a 30CM length |
|
●CAB-SPWR-150CM stack power cable with a 150CM length |
|
|
Power supply |
PWR-C1-350WAC |
|
Power Device |
Power supply - redundant - plug-in module |
|
Power Redundancy |
optional |
|
Voltage range (Auto) |
100V-240V |
|
Power Consumption of standalone(in Watts) |
84.97 (max) |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
17.7 Inches (44.5 Cm) |
|
Height |
1.75 Inches (4.45 cm) |
|
Weight |
15.9 Pounds (7.2Kg) |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
303230 |
|
Compliant Standards |
● IEEE 802.1D Spanning Tree Protoco |
|
● IEEE 802.1p CoS Prioritization |
|
|
● IEEE 802.1Q VLAN |
|
|
● IEEE 802.1s |
|
|
● IEEE 802.1w |
|
|
● IEEE 802.1X |
|
|
● IEEE 802.1X-Rev |
|
|
●IEEE 802.11 |
|
|
● IEEE 802.1ab (LLDP) |
|
|
● IEEE 802.3ad |
|
|
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports |
|
|
● IEEE 802.3 10BASE-T |
|
|
● IEEE 802.3u 100BASE-TX |
|
|
● IEEE 802.3ab 1000BASE-T |
|
|
● IEEE 802.3z 1000BASE-X |
|
|
● RMON I and II standards |
|
|
● SNMP v1, v2c, and v3 |
|
|
System software / license |
|
|
System software |
IOS IP Service |
|
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
Access Point Licenses |
●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) |
|
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) |
|
|
●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license) |
|
|
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
|
|
Features |
●EEM ●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP |
|
● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust |
|
|
and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies |
|
|
● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority |
|
|
Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS |
|
|
and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency |
|
|
● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, |
|
|
PIM sparse-dense mode, SSM ● Flexible Netflow |
|
|
Advanced Network security |
● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) |
|
● Bidirectional data support on a SPAN ● User authentication |
|
|
● Private VLAN ●Router and VLAN ACLs ● complete identity and security |
|
|
● Multidomain authentication ● MAC address notification |
|
|
● IGMP filtering ● Cisco security VLAN ACL |
|
|
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) |
|
|
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae |
|
|
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs |
|
|
● Bridge protocol data unit (BPDU) Guard |
|
|
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
|
|
Management |
●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB |
|
●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB |
|
|
●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB |
|
|
●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB |
|
|
●CISCO-CIRCUIT-INTERFACE-MIB |
|
|
●CISCO-ENTITY-VENDORTYPE-OID-MIB |
|
|
●CISCO-CONTEXT-MAPPING-MIB |
|
|
●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB |
|
|
●CISCO-EIGRP-MIB |
|
|
●CISCO-EMBEDDED-EVENT-MGR-MIB |
|
|
●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB |
|
|
●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB |
|
|
●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB |
|
|
●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB |
|
|
●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB |
|
|
●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB |
|
|
●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB |
|
|
●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB |
|
|
●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB |
|
|
●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB |
|
|
●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB |
|
|
●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB |
|
|
●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB |
|
|
●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB |
|
|
●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB |
|
|
●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB |
|
|
●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB |
|
|
●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB |
|
|
●CISCO-SMART-INSTALL-MIB |
|
|
●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB |
|
|
●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB |
|
|
●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB |
|
|
●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB |
|
|
●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB |
|
|
●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB |
|
|
●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB |
|
|
●LLDP-MIB ●NOTIFICATION-LOG-MIB |
|
|
●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB |
|
|
●POWER-ETHERNET-MIB ●RMON2-MIB |
|
|
●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB |
|
|
●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB |
|
|
●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB |
|
|
●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB |
|
|
●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB |
|
|
●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB |
|
|
●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB |
|
|
●CISCO-LWAPP-CLIENT-ROAMING-MIB |
|
|
●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB |
|
|
●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB |
|
|
●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB |
|
|
●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB |
|
|
●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB |
|
|
●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB |
|
|
●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB |
|
|
●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB |
|
|
●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB |
|
|
●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB |
|
|
Technical Support and Services |
● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
|
Environmental Ranges |
|
|
With AC power supply Operating environment and altitude |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception up to 5000 feet (1500 m) |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
With DC power supply Operating environment and altitude (NEBS) |
|
|
Operating temperature up to 6000 ft (1800 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Operating temperature up to 13,000 ft (4000m) |
23ºF to 95ºF (-5ºC to 35ºC) |
|
Short-term exception up to 6,000 feet (1800 m) |
23ºF to 131ºF (-5ºC to +55ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 122ºF (-5ºC to +50ºC) |
|
Short-term exception up to 13,000 feet (4000 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45º) |
|
Storage environment |
-40ºF to 160ºF (-40ºC to 70ºC) |
|
Operating altitude |
Up to 13,000 Feet (Up to 4000 Meters) |
|
Storage altitude |
Up to 15,000 Feet (Up to 4573 Meters) |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
Specification
