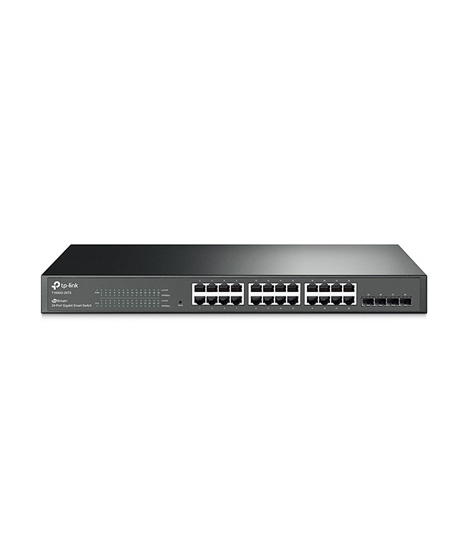

TP-Link JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots T1600G-28TS (TL-SG2424)

SKU : CDX1-0133
Rs. 54,999
1.7
33% Positive Seller Ratings

Get free returns on eligible items
Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home
Categories
Sale
My account
My cart

About this Item

iShopping.pk brings you the best price for TP-Link JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots T1600G-28TS (TL-SG2424) with express shipping all over Pakistan



Features:
• Gigabit Ethernet connections on all ports provide full speed of data transferring
• L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
• Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
• IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
• WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features



Specifications:

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,

IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,

IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

24 10/100/1000Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

4 Gigabit SFP Slots

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable

(maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity

Fanless

Power Supply

100~240VAC, 50/60Hz

Power Consumption

Maximum: 23.2W (220V/50Hz)

Dimensions ( W x D x H )

17.3*7.1*1.7 in. (440*180*44 mm)

PERFORMANCE

Bandwidth/Backplane

56Gbps

Packet Forwarding Rate

41.7Mpps

MAC Address Table

16k

Jumbo Frame

9216 Bytes

SOFTWARE FEATURES

Quality of Service

Support 802.1p CoS/DSCP priority

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

IPv6 QoS*

Voice VLAN

L2 and L2+ Features

Static Routing

DHCP Relay*

IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

BPDU Filtering/Guard

TC/Root Protect

Loopback detection

802.3x Flow Control

LLDP, LLDP-MED*

VLAN

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

MAC/Protocol-based VLAN

Access Control List

L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports

IPv6 ACL*

Security

AAA*

Port Security

DHCP Snooping

IP-MAC-Port Binding

ARP Inspection

802.1x and Radius Authentication

SSH v1/v2

SSL v3/TLSv1

Broadcast/Multicast/Unknown-unicast Storm Control

Dos Defend

IPv6

Dual IPv4/IPv6 stack

Multicast Listener Discovery (MLD) Snooping

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 Applications

DHCPv6 Client

Ping6

Tracert6

Telnet (v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http/Https

IPv6 TFTP

Management

Web-based GUI and CLI management

SNMP v1/v2c/v3,compatible with public MIBs and

TP-LINK private MIBs

RMON (1, 2, 3, 9 groups)

CPU Monitoring

Port Mirroring

Firmware Upgrade: TFTP & Web

System Diagnose: VCT

SYSLOG & Public MIBS

Dual Image

*These features will be supported in a future firmware release.

OTHERS

Certification

CE, FCC, RoHS

Package Contents

T1600G-28TS

Power Cord

Installation Guide

Resource CD

Rackmount Kit

Rubber Feet

System Requirements

Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing





What This Product Does

TP-Link JetStream Gigabit Smart Switch T1600G-28TS is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies. Equipped with 24 gigabit RJ45 ports and 4 SFP slots, T1600G-28TS supports multiple useful features. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown Unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2/L2+ switch and gigabit capability, TP-Link JetStream Gigabit Smart Switch T1600G-28TS provides you the ideal access-edge solution.


Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.



Abundant L2 and L2+ Features

For more application of L2 switches, T1600G-28TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, IP-MAC-Port Binding, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-28TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

IPv6 Support

T1600G-28TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery.



Enterprise Level Management Features

T1600G-28TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image,which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
