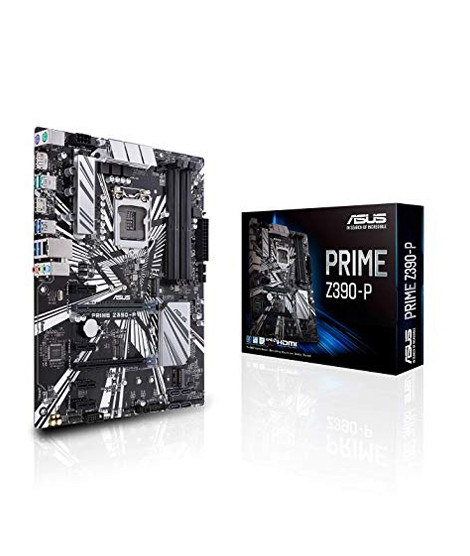

Asus PRIME Z390-P Intel LGA 1151 ATX Motherboard

CPU

Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 3.0

* Refer to www.asus.com for CPU support list

* The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.

Chipset

Intel® Z390

Memory

4 x DIMM, Max. 64GB, DDR4

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics Processor- Intel® UHD Graphics support

Multi-VGA output support : HDMI/DisplayPort ports

- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz

- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

4 x PCIe 3.0/2.0 x1

1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module*

*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.

* The Wi-Fi/BT module is purchased separately

Storage

Intel® Z390 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)

PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card

LAN

Realtek® RTL8111H, support LANGuard

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

Intel® Z390 Chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)

Intel® Z390 Chipset :

8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board)

Intel® Z390 Chipset :

3 x USB 2.0/1.1 port(s)

Special Features

Fan Xpert4

- Advanced fan and liquid controls for ultimate cooling and quietness

ASUS 5X Protection III :

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: Premium components provide better power efficiency

ASUS Optimem II：

- Optimem (Improved DDR4 stability)

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 4

ASUS EZ DIY :

- ASUS O.C. Tuner

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

MemOK! II

- Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)

Q-Installer

- Auto download driver and software. Friendly for first PC builder.

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 Type-A,

4 x USB 3.1 Gen 1 Type-A

3 x 8-channel Audio I/O

Internal I/O Ports

1 x Lighting Control RGB Strip Header(s)

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 1 with E key, type 2230 Wi-Fi/BT device support or Intel® CNVi (Integrated Wi-Fi/BT) module

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x S/PDIF out header(s)

1 x 8-pin EATX 12 V Power connector

1 x 24-pin EATX Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x MemOK! II switch(es)

1 x Clear CMOS jumper(s)

1 x System panel connector

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1,

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor

12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
