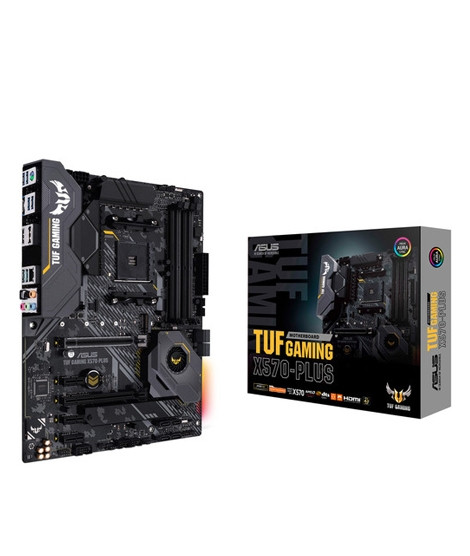

Asus TUF X570-PLUS AMD AM4 ATX Gaming Motherboard
• ATX Form Factor
• AMD X570 Chipset
• Socket AM4
• 4 x Dual-Channel DDR4-4400 (OC)
Free Returns
Free 7 Days Return
Lowest Prices
Market com petitive prices
Customer Support
Phone, Email and WhatsApp
Fast Shipping
Shipped In 1-3 Days
About this Item
iShopping.pk brings you the best price for Asus TUF X570-PLUS AMD AM4 ATX Gaming Motherboard with express shipping all over Pakistan.
Features:
AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors
Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
Next-Gen Connectivity: Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek® L8200A Gigabit Ethernet, TUF LANGuard and TurboLAN technology
Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
Specifications:
CPU | |
Chipset | AMD X570 |
CPU Socket | AM4 |
Back Panel I/O | |
USB | 4 x USB 3.1 / USB 3.2 Gen 1 Type-A |
2 x USB 3.1 / USB 3.2 Gen 2 Type-A | |
1 x USB 3.1 / USB 3.2 Gen 2 Type-C | |
Thunderbolt | None |
Display | 1 x DisplayPort |
1 x HDMI 1.4b | |
Audio | 5 x 3.5 mm |
1 x S/PDIF | |
Ethernet / Controller | 1 x Realtek L8200A Gigabit |
PS/2 | 1 x PS/2 |
Memory | |
Memory Slots | 4 x 288-Pin |
Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 4400 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
Storage Expansion | |
SATA | 8 x SATA III |
M.2 | 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III) |
U.2 | None |
RAID Support | RAID 0, 1, 10 |
Internal I/O | |
Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode) |
1 x PCIe 4.0 x16 (x4 mode) | |
3 x PCIe 4.0 x1 | |
USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Ports) |
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Ports) | |
Multi-GPU Support | 2-Way AMD CrossFireX |
Air Cooling | 1 x 4-Pin CPU |
1 x 4-Pin Assistant | |
3 x 4-Pin System | |
Liquid Cooling | 1 x 4-Pin Pump |
Power Connectors | 1 x 24-Pin Mainboard |
1 x 8-Pin CPU | |
1 x 4-Pin CPU | |
Security | TPM Module |
LED Header | 3 x RGB |
Audio | None |
Diagnostics | Clear CMOS |
Legacy | 1 x Serial |
BIOS | |
ROM | 256 Mb |
Front Panel I/O | |
I/O Connection Headers | AAFP |
Audio | |
Audio Codec | Realtek ALC S1200A (8-Channel) |
Software | |
Supported Operating Systems | Windows 10 (64-Bit) |
Physical | |
Form Factor | ATX |
Dimensions | 9.6 x 12" / 243.84 x 304.80 mm |
Specification
