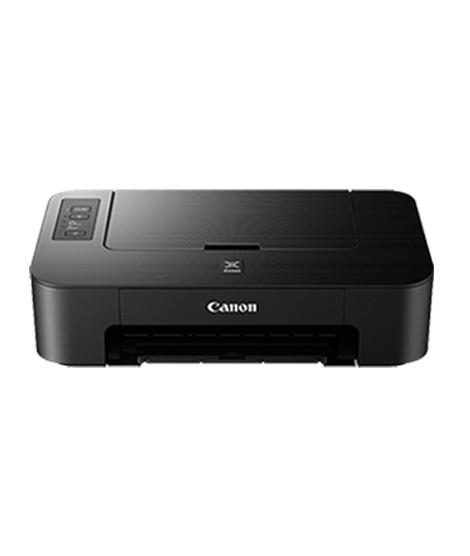

Canon PIXMA TS207 InkJet Printer

Print

Print Head / Ink

Type

FINE Cartridge

Number of Nozzles

Total 1,280 nozzles

Ink Cartridges

PG-745S, CL-746S (Optional: PG-745, CL-746 / PG-745XL, CL-746XL)

Maximum Printing Resolution*1

4800 (horizontal)*2 x 1200 (vertical) dpi

Print Speed*2

Based on ISO / IEC 24734.

Document: Col

ESAT / Simplex: Approx. 4.0ipm

Document: B/W

ESAT / Simplex: Approx. 7.7ipm

Photo (4 x 6")

PP-201 / Borderless: Approx. 65sec.

Printable Width

Up to 203.2mm (8 inch)

Printable Area

Borderless Printing*3

Top / Bottom / Right / Left margin: each 0mm

(Supported Paper Size: 4 x 6")

Bordered Printing

Top margin: 3mm, Bottom margin: 5mm,

Left / Right margin: each 3.4mm (LTR: Left: 6.4mm, Right: 6.3mm)

Recommended Printing Area

Top margin: 31.6mm / Bottom margin: 29.2mm

Paper Size

A4, LTR, 4 x 6", 5 x 7", Custom size (width 89 - 215.9mm, length 127 - 676mm)

Paper Handling

(Rear Tray)

(Maximum Number)

Plain Paper

A4, LTR = 60

Photo Paper Plus Glossy II

4 x 6" = 20

(PP-201)

Glossy Photo Paper "Everyday Use"

4 x 6" = 20

(GP-508)

Photo Paper Plus Glossy II

4 x 6" = 20

(PP-208)

Photo Sticker (Free cutting)

4 x 6" = 1

(PS-208)

Photo Sticker (Free cutting, Removable)

4 x 6" = 1

(PS-308R)

Rear Tray

Plain Paper: 64 - 105g/m², Canon specialty paper: max paper weight: approx. 275g/m²(Photo Paper Plus Glossy II (PP-201))

Ink End Sensor

Dot count

Print Head Alignment

Manual

System Requirements

Windows:

Windows 10, Windows 8.1, Windows 7 SP1

Macintosh:

Mac OS X v10.10.5 ~ v10.11, Mac OS v10.12*

* via AirPrint

General Specifications

Interface

USB 2.0 Hi-Speed

Operating Environment*4

Temperature:

5 - 35°C

Humidity:

10 - 90% RH (no dew condensation))

Recommended Environment*5

Temperature:

15 -30°C

Humidity:

10 - 80% RH (no dew condensation)

Storage Environment

Temperature:

0 - 40°C

Humidity:

5 - 95% RH(no dew condensation)

Quiet Mode

Available

Acoustic Noise (PC Print)

Photo (4 x 6")*6

Approx. 46.0dB(A)

Power

AC 100 - 240V, 50 / 60Hz

Power Consumption

OFF

Approx. 0.2W

Standby (scanning lamp is off)

Approx. 1.2W

(USB Connection to PC)

Standby (all ports connected, scanning lamp is off)

Approx. 0.9W

Printing*7

Approx. 10W

Environment

Regulation

RoHS (EU, China), WEEE (EU)

Dimension (W x D x H)

Factory configuration

426 x 255 x 131mm

Output / ADF trays extended

426 x 562 x 213mm

Weight

2.5kg
