Model

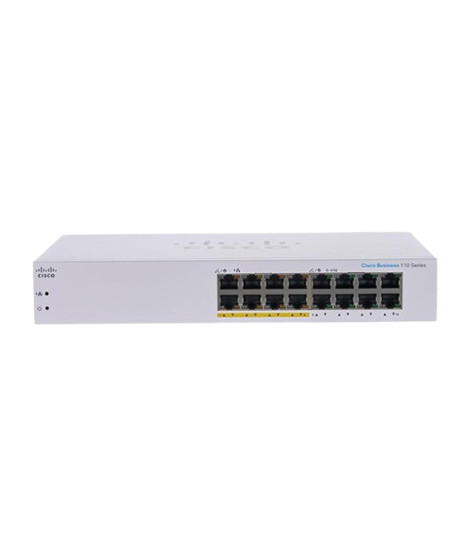

CBS110-16PP-EU

Description

16-Port Gigabit Ethernet Unmanaged Switch with 8 PoE Ports

Performance

Non-blocking, wire-speed architecture

Capacity in Millions of Packets per Second (mpps) (64-byte packets)

23.8 mpps

Switching Capacity in Gigabits per Second (Gbps)

32 Gbps

Head-of-Line (HOL) Blocking

HOL blocking prevention

MAC Table

8K addresses

Jumbo Frame

9216 bytes

Quality of Service (QoS)

802.1p priority-based, 4 hardware queues, priority queuing, and Weighted Round-Robin (WRR)

Loop Detection

Helps discover loops in the network to avoid broadcast storms

Cable Diagnostics

Quickly identify and troubleshoot network cable faults and/or shorts

Media-Dependent Interface

Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af Power over Ethernet

Ports

16 Gigabit Ethernet

RJ-45 Ports

16

Combo Ports (RJ-45 + SFP)

–

Power over Ethernet (PoE) 802.3af

Power Dedicated to PoE

64W

Number of Ports that Support PoE

8

LEDs

Power, link/activity, Gigabit, PoE, Max PoE (if present)

Cabling Type

Category 5e or better

Mounting Options

Desktop, wall-mount or rack mount

Physical Security Lock

Kensington lock slot

Flash

16 MB

CPU

400 MHz ARM

CPU Memory

128 MB

Packet Buffer

2 Mbit

SKU

Media

MGBSX1

Multimode fiber

Speed

1000 Mbps

Maximum Distance

500 m

MGBLX1

Single-mode fiber

Speed

1000 Mbps

Maximum Distance

10 km

MGBLH1

Single-mode fiber

Speed

1000 Mbps

Maximum Distance

40 km

MGBT1

UTP cat 5e

Speed

1000 Mbps

Maximum Distance

100 m

Unit Dimensions (W x D x H)

279 x 170 x 44 mm (11 x 6.7 x 1.73 in)

Unit Weight

1.30 kg (2.87 lb)

Power

100 to 240V, 50 to 60 Hz, internal, universal

System Power Consumption

11.16W (110V), 11.41W (220V)

Power Consumption (with PoE)

80.28W (110V), 80.38W (220V)

Heat Dissipation (BTU/hr)

274.27

Green (Power Efficiency)

Supports IEEE 802.3az on all copper Gigabit Ethernet ports

Compliance/Certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B (select models)

Operating Temperature

32° to 104°F (0° to 40°C)

Storage Temperature

–4° to 158°F (–20° to 70°C)

Operating Humidity

10% to 90%, relative, non-condensing

Storage Humidity

5% to 90%, relative, non-condensing

Fan (Number)

Fanless

Acoustic Noise

N/A

MTBF at 25°C (hours)

1,971,811
