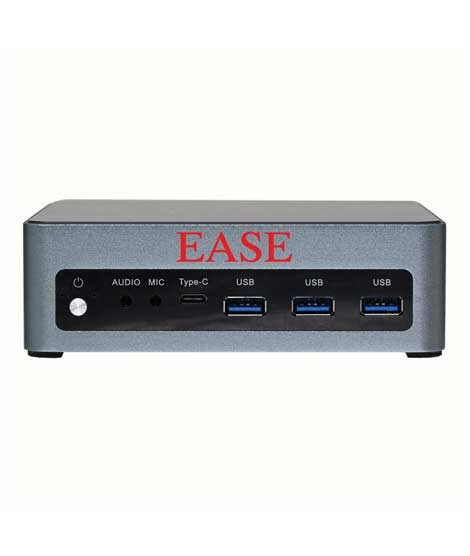

EASE Mini PC Core i7 1360P 2.2GHz up to 5.0GHz (EMi713G)

Basic Information

CPU

 Onboard Intel Raptor Lake Core i7-1360P 2.2GHz up to 5.0GHz(Turbo boost Technology) 12 Core 16 Threads 18MB cache 28W TDP Intel® Iris® Xe Graphics eligible.

TDP

28W

Chipset

Raptor Lake

Memory

2 x SO-DIMM DDR5 Slot, up to 64GB

OS

Windows10/11/Linux

PXE

Yes

Network

2 x Realtek RTL8111H Gigabit Ethernet Controller

10/100Mbps/1000Mbps BaseT LAN

Video

Intel Iris Xe Graphics

Input/Output port

Switch

1 x Power On/Off Switch

Power

DC+12V~19V

USB

3 x USB3.2，2 x USB2.0，1 x USB Type-C

Display

1 x HDMI 2.0，1 x DP 1.4，1 x USB Type-C

LAN

1 x 2.5G RJ45 Giga Lan

Audio

1 x SPK, 1 x MIC

Storage

M.2

2 x M.2 slot for NVME SSD (SSD1 supports M.2 SATA)

Wi-Fi

Module

1 x M.2 slot for Wi-Fi module

Antenna

2 x inner RF cables and without antenna

Power and Working Environment

Input

DC 100-240V AC/50-60Hz

Output

DC +12V~+19V.

Operating Temperature

-20/+60 Centigrade

Storage Temperature

-30/+70 Centigrade

Relative Humidity

10%~90% @30°C (non-condensing)

Product Dimension & Details

Size

138x 126 x 44mm

Shell

Metal Grey Color Aluminum Alloy ABS

Cooling Mode

All-copper turbo fan

Functions

Wake on Lan, Auto Power On, RTC, PXE

Package Content

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag

Optional

1xHDMI cable, 1xUser Manual
