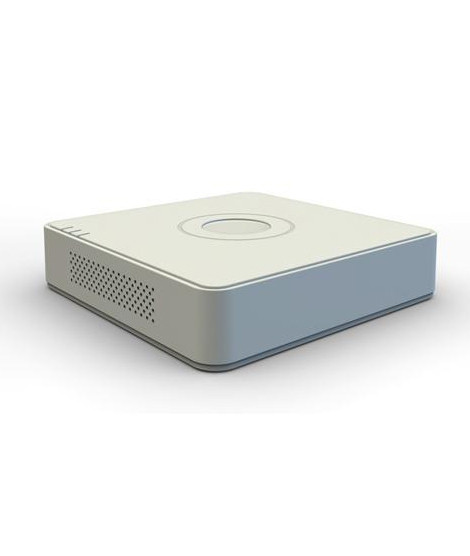

Hikvision 4 Channel Turbo HD DVR (DS-7104HQHI-K1)
• USB Interface: 2 USB 2.0 Interfaces
• Power Supply: 12V DC
• Consumption: ≤ 15 W(without hard disks)
• Chassis: Mini 1U chassis
Free Returns
Free 7 Days Return
Lowest Prices
Market com petitive prices
Customer Support
Phone, Email and WhatsApp
Fast Shipping
Shipped In 1-3 Days
About this Item
iShopping.pk brings you the best price for Hikvision 4 Channel Turbo HD DVR (DS-7104HQHI-K1) with express shipping all over Pakistan.
Features:
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 4 MP lite resolution for recording
•Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
• 4 synchronous playback
Specifications:
Video/Audio Input | |
Audio Input: | 1-ch |
Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types: | 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. | |
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
support CVBS input | |
Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
Audio Compression: | G.711u |
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | |
HDMI/VGA Output: | 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz |
Recording resolution: | When 1080p Lite mode not enabled: |
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF | |
When 1080p Lite mode enabled: | |
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF | |
Frame Rate: | Main stream: |
When 1080p Lite mode not enabled: | |
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps | |
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
When 1080p Lite mode enabled: | |
4 MP lite/3 MP@15fps; | |
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Video Bit Rate: | 32 Kbps-6 Mbps |
Stream Type: | Video/Video&Audio |
Audio Output: | 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate: | 64kbps |
Dual Stream: | Support |
Synchronous Playback: | 16-ch |
Network management | |
Remote connections: | 128 |
Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF |
Hard Disk Driver | |
Interface Type: | 1 SATA Interface |
Capacity: | Up to 6 TB capacity for each disk |
External Interface | |
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface |
USB Interface: | 2 USB 2.0 Interfaces |
General | |
Power Supply: | 12V DC |
Consumption: | ≤ 15 W(without hard disks) |
Working Temperature: | -10 oC ~+55 oC (14 oF ~ 131 oF) |
Working Humidity: | 10% ~ 90% |
Chassis: | Mini 1U chassis |
Dimensions: | 285 × 210 × 45 mm |
(11.2× 8.3 × 1.8 inch) | |
Weight: | ≤ 1 kg (2.2 lb) |
