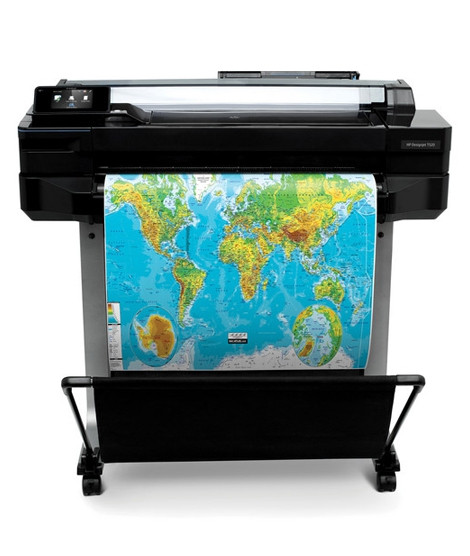

HP DesignJet T520 24" Multifunction Printer (CQ890A)

Printing Method

Printing Technology

4-color thermal inkjet

Maximum Resolution

1200 x 1200 input dpi

Line Accuracy

±0.1%

Ink Palette

Cyan, Magenta, Yellow, Black

Ink Type

Dye-Based: Cyan, Magenta, Yellow

Pigment-Based: Black

Ink Cartridge Configuration

4 individual cartridges

Maximum Optical Density

2.10 maximum black optical density (8 L*min)

Printer Language

HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4

Print Speed

US D - Best: 16.3 min/page

US D - Normal: 9.3 min/page

US D - Draft: 1.3 min/page

Paper Handling

Paper-Feed Method

Sheet feed, roll feed, input tray;

Cutter

Automatic cutter

Maximum Paper Width

24.0" (60.96 cm)

Paper Sizes

Sheet: 8.3 x 11.0 to 24.0 x 66.0" (21.0 x 27.94 to 60.96 x 167.6 cm)

Roll Width: 11.0 to 24.0" (27.94 to 60.96 cm)

Paper Types

Plain: Bond, coated, heavyweight coated, recycled, plain, bright white

Technical: Natural tracing, vellum

Film: Clear, matte

Photo: Satin, gloss, semigloss, premium, polypropylene

Self-Adhesive: Adhesive, polypropylene

Media Thickness

Up to 11.8 mil (299.72 micron)

Media Weight

Roll Feed: 60 to 280 g/m²

Manual Feed: 60 to 280 g/m²

Input Tray: 60 to 220 g/m²

Maximum Roll Print Length

150.0' (46.0 m)

Maximum Media Roll Diameter

3.9" (9.91 cm)

Connectivity

Interface

Hi-Speed USB 2.0

Fast Ethernet (100Base-T)

Wi-Fi

OS Compatibility

Windows: Windows 7 Ultimate/Professional/Home Premium, Vista Ultimate/Business/Home Premium, XP (32/64-bit) Professional/Home, Server 2008 (32/64-bit), Server 2008 R2, Server 2003 (32/64-bit)

Mac: OS X 10.6, 10.7, 10.8

Citrix: XenApp, XenServer

Internal Memory

1.0 GB

Physical

Control Panel

LCD: 4.3" color touchscreen

Icons: Wireless, Home, Help, Previous/Next, Back, Cancel

Power Requirements

100 to 240 V AC ±10%, 50/60 Hz, 1200 mA max

Power Consumption

Printing: < 35 W

Power Save: < 4.5 W

Standby: < 0.3 W

Acoustic Noise

Sound Power (Operating): 6.5 B(A)

Sound Power (Standby): < 3.4 B(A)

Sound Pressure (Operating): 48 dB(A)

Sound Pressure (Standby:) < 16 dB(A)

Temperature / Humidity

Operating Temperature: 41 to 104 °F (5 to 40 °C)

Recommended: 59 to 95 °F (15 to 35 °C)

Storage Temperature: -13 to 131 °F (-25 to 55 °C)

Operating Humidity: 20 to 80%

Storage Humidity: 0 to 95%

Dimensions (WxDxH)

38.9 x 20.9 x 11.2" (98.81 x 53.09 x 28.45 cm)

Weight

56.2 lb (25.49 kg)
