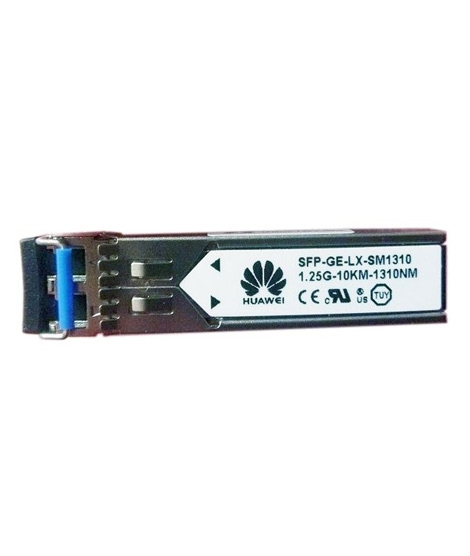

Huawei 1000 BASE-LX 1310nm 10km SFP Transceiver (SFP-GE-LX-SM1310)

SKU : ARA1-0584-MP

Rs. 12,000

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

Huawei 1310nm 10km SFP Transceiver Delivered all over Pakistan

iShopping.pk brings you the best price for Huawei 1000 BASE-LX 1310nm 10km SFP Transceiver (SFP-GE-LX-SM1310) with express shipping all over Pakistan.

Details:

Huawei SFP-GE-LX-SM1310 Compatible 1000BASE-LX SMF 1310nm 10km DDM SFP Transceiver
Optcore’s OSP1250-3120DCR-HW is a high-performance and cost-effective small form-factor pluggable (SFP) transceiver for 1000BASE-LX Gigabit Ethernet and 1G Fiber Channel application. It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on MSA-compliant networking equipment. The 1000BASE-LX SFP transceiver is tested to be compatible with Huawei networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs), and Media Converters.

The SFP transceiver is an ideal equivalent to Huawei SFP-GE-LX-SM1310 1000BASE-LX SMF 1310nm10km SFP Transceiver but with a much lower price, which provides a reliable compatible SFP transceiver solution for system integrator, distributors, and end-users in network infrastructure and fiber cabling. The SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the 1310nm FP laser, and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product that complies with FDA/CDRH and IEC-60825 standards.

Features:

• Support Up to 1.25Gb/s data links
• Up to 10km on 9/125µm SMF
• Compliant with SFP MSA standard
• Compliant with IEEE 802.3z
• Hot-pluggable SFP footprint
• Single 3.3V power supply
• LC Duplex connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free

Specifications:

Module name	SFP-GE-LX-SM1310
Part Number	2315200
Model	SFP-GE-LX-SM1310
Form factor	eSFP
Application standard	1000BASE-LX10/LH
Connector type	LC
Optical fiber type	SMF
Working case temperature [°C(°F)]	0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]	1 Gbit/s
Target transmission distance [km]	Single-mode fiber: 10 km
Transmitter Optical Characteristics
Center wavelength [nm]	1310 nm
Maximum Tx optical power [dBm]	-3.0 dBm
Minimum Tx optical power [dBm]	-9.0 dBm
Minimum extinction ratio [dB]	9 dB
Receiver Optical Characteristics
Rx sensitivity [dBm]	-20.0 dBm
Overload power [dBm]	-3.0 dBm
