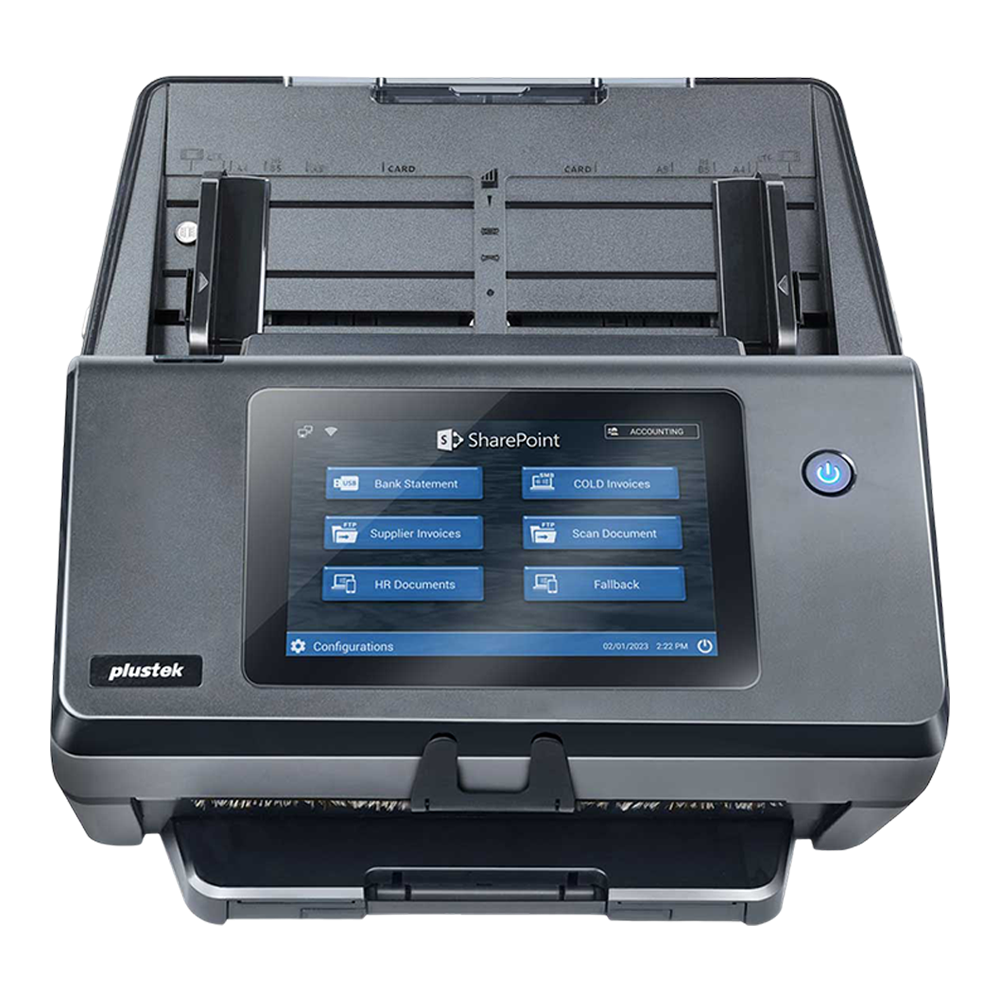

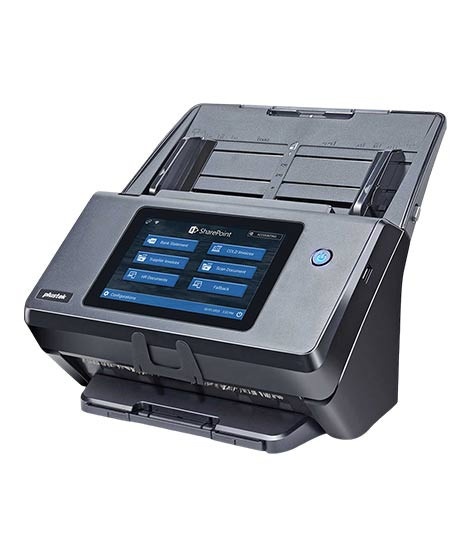

Plustek eScan A450 Pro Scanner

Brand

Plustek

Model

eScan A450 Pro

Type

Sheet-Feed Wi-Fi Scanner

Image Sensor

CIS x 2 (Duplex Scanner)

Light Source

LED

Optical Resolution

600 dpi

Hardware Resolution

600 x 600 dpi

Scan Modes (Bit Depth)

Color: Input 48-bit, Output 24-bit

Grayscale: Input 16-bit, Output 8-bit

Black & White: 1-bit

ADF Capacity

1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)

2. 30 sheets (Business Cards, landscape feeding)

3. Plastic Card, Max. thickness under 1.2 mm landscape feeding

Scan Speed (ADF)

60 ppm/ 120 ipm (Color/ Gray/ B/W, 300 dpi, A4 Portrait)

Scanning Area

Max. 216 x 356 mm (8.5" x 14")

*for long paper 216 x 5080 mm (8.5" x 200")

Min. 13.2 x 13.2 mm (0.52" x 0.52")

Acceptable Paper Sizes (W x L)

Max: 244 x 5080 mm (9.65” x 200”)

Min: 50.8 x 50.8 mm (2” x 2”)

Acceptable Paper Weight (Thickness)

27 to 413 g/㎡ (7.2 to 110 Lbs)

Multi-feed Detection

With ultrasonic technology

Daily Duty Scan ( Sheets )

8000

Roller Lifetime (Scans)

300,000

Pad Lifetime (Scans)

300,000

Friction Roller Lifetime (Scans)

100,000

Action Button

Power

Power Supply

24 Vdc/ 2.7 A

Network Functions

Scan to USB

Scan to FTP/SFTP/FTPS

Scan to Network (SMB 2.0/3.0)

Scan to SMTP

Scan to SharePoint 2010/2013/2016/2019

Scan to SharePoint Microsoft 365

Scan to OneDrive for Business

Scan to Outlook

Scan to OneNote Online

Scan to Microsoft Exchange

Scan to Azure File Storage

Connectivity

2x USB 2.0

1x USB 2.0 (Host)

1x RJ45 (network connection)

Net Weight

4.1 Kgs, 9.04 Lbs

Dimensions s (W x D x H)

319.9 x 298.2 x 236.6 mm, 12.59" x 11.74" x 9.32"

Operation Panel

Display: 7" 1280×800 pixels with IPS wide view multi-touch screen

Protocol

TWAIN Compliant

Network TWAIN Compliant

Built-in OCR

Built-in OCR
