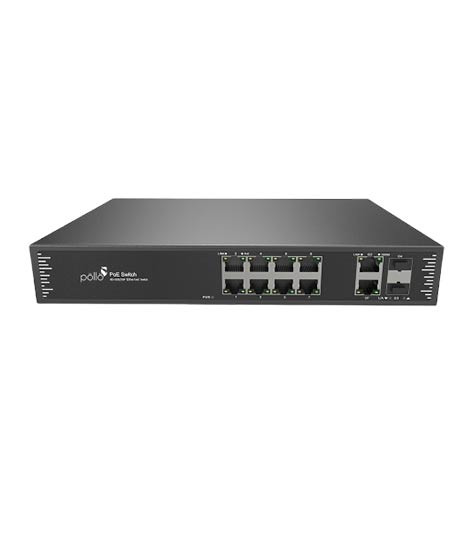

Pollo 12 Port Gigabit Network Switch (PLN-1108MGB-SFP)

Model

PLN-1108MGB-SFP

Fixed Port

8*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T RJ45 ports (Data) 2*1000Base-X uplink SFP fiber slot ports (Data)

Ethernet Port

Port 1-8 support 10/100Base-TX, Port 9-10 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter)

SFP Slot Port

Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Cable/ Distance

Multi-mode: 850nm / 0 ~ 550m, Single-mode: 1310nm / 0 ~ 40km, 1550nm / 0 ~ 120km.

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

12Gbps (non-blocking)

Forwarding Rate@64byte

7.14Mpps

MAC

2K

Buffer Memory

2M

Jumbo Frame

9.2K

LED Indicator

Power: PWR (green), network: Link, link/Act (yellow), PoE: PoE (green), rate: 1000M (green)

PoE Port

Port 1 to 8 IEEE802.3af/at @ POE

Power Supply Pin

Default 1/2 (+), 3/6 (-)

Max Power Per Port

30W; IEEE802.3af/at

Total PWR / Input Voltage

130W /(AC100-240V)

Power Consumption

Standby<6W, Full Load<120W

Power Supply

Built-in power supply, AC 100~240V 50-60Hz 2.3A

Operation TEMP / Humidity

-20~+55°C, 5%~90% RH Noncondensing

Storage TEMP / Humidity

-40~+80°C, 5%~95% RH Noncondensing

Dimension (L*W*H)

270*181*44.5mm

Net /Gross Weight

<1.3kg / <1.8kg
