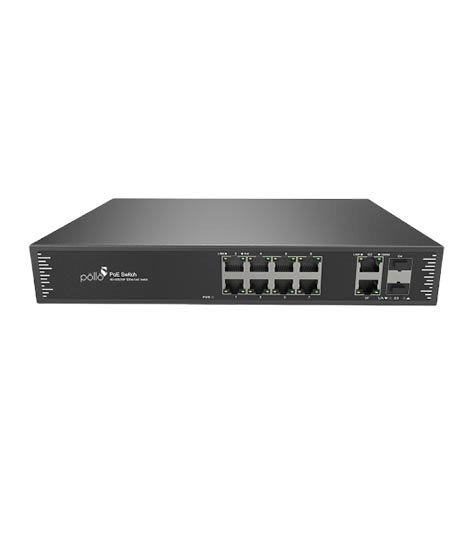

Pollo 12 Port PoE Network Switch (PLN-1108GB-SFP)

Product Name

PLN-1108GB-SFP

Fixed Port

8*10/100/1000Base-T PoE ports (Data/Power) 1*10/100/1000Base-T uplink RJ45 port (Data) 1*1000Base-X uplink SFP fiber slot port (Data)

Ethernet Port

Port 1-9 can support 10/100/1000Base-T,auto-sensing, full/half duplex MDI/MDI-X

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter)

SFP Slot Port

Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Cable

Multi-mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

20Gbps

Forwarding Rate@64byte

14.88Mpps

MAC

8K

Buffer Memory

2M

Jumbo Frame

9.6K

LED Indicator

Power : PWR (green), network :Link(yellow), PoE: PoE(green)

Reset Switch

Yes, One-button factory reset

PoE Port

Port 1 to 8 IEEE802.3af/at @ POE

Power Supply Pin

Default: 1/2(+),3/6(-), optional:4/5 (+), 7/8 (-)

Max Power Per Port

30W; IEEE802.3af/at

Total PWR / Input Voltage

250W (DC52V)

Power Consumption

Standby<7W, Full load<240W

Power Supply

External power adapter, AC100~240V 50-60Hz 4.1A

Operation TEMP / Humidity

-20~+55°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+75°C;5%~95% RH Non condensing

Dimension (L*W*H)

191*105*29mm

Net /Gross Weight

<0.6kg / <1.4kg
