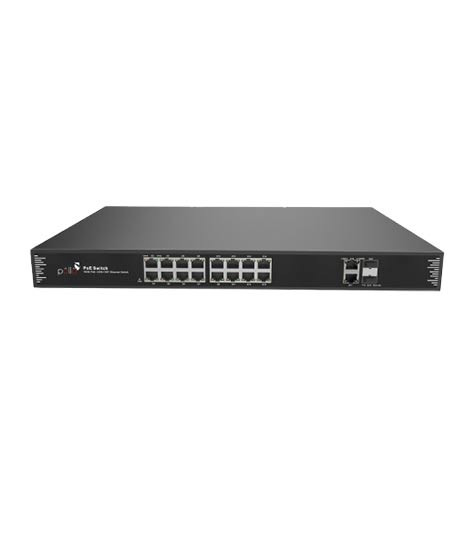

Pollo 16+2+2 Port Full Giga Network Switch (PLN-1116GB-SFP)

Model

PLN-1116GB-SFP

Fixed Port

16*10/100/1000Base-T PoE ports (Data /Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000Base-X uplink SFP slot ports (Data)

Ethernet Port

Port 1-16 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meters), 100BASE-TX: Cat5 or later UTP(≤100 meters), 1000BASE-T: Cat5e or later UTP(≤100 meters)

SFP Slot Port

Gigabit SFP optical fiber port, default no include optical modules (optional order single-mode/ multi-mode, single fiber / dual fiber optical module. LC)

Optical Cable/ Distance

Multi-mode:850nm/ 0-500M, Single-mode:1310nm/ 0-40KM, 1550nm/ 0-120KM.

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

56Gbps (Non-blocking)

Forwarding Rate@64byte

29.76Mpps

MAC

8K

Buffer Memory

4M

Jumbo Frame

9.6K

LED Indicator

Power: PWR (Green), Network: Link, Link/Act (Yellow), PoE: PoE(Green), Fiber port: L/A (Green), Speed: SPD(Green)

Reset Switch

Yes, One-button factory reset

PoE Port

Port 1 to 16

Power Supply Pin

1/2(+) 3/6 (-)

Max Power Per Port

30W, IEEE802.3af/at

Total PWR / Input Voltage

250W (AC100-240V)

Power Consumption

Standby<15W, Full Load<240W

Power Supply

Built-in power supply AC100~240V 50-60Hz 4.1A

Operation TEMP / Humidity

-20~+55°C, 5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+75°C, 5%~95% RH Non condensing

Dimension (L*W*H)

440*290*44.5mm

Net /Gross Weight

<3.3kg /<4.0kg
