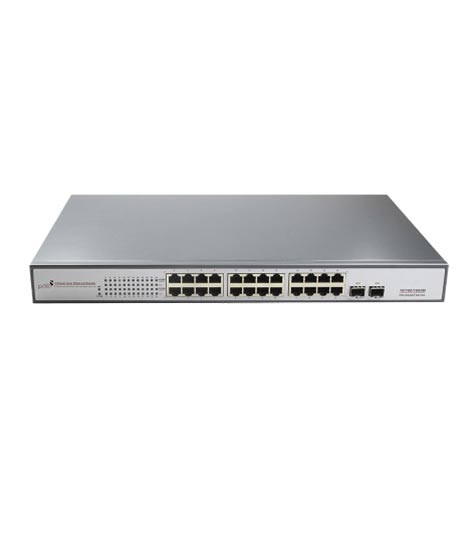

Pollo 24 Port Gigabit PoE 2 SFP Ports Network Switch (PLN-1124GB-SFP)

Product Name

24 Gigabit PoE Ports with 2 Uplink SFP Ports

Product Model

PO1124GB-SFP

Connector

24x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment); 2x 10/100 /1000Mbps SFP fiber uplink ports

Forwarding Mode

1000M line speed forwarding; Packet Length: 10K; Packet Buffer: 4.1M

Network Medium

10BASE-T: Cat3,4,5,6 UTP(≤100 meters); 100BASE-T: Cat5 or more UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP(≤100 meter)

Performance Specifications

Backplane Bandwidth: 52Gbps Network delay less than 20 microseconds Packet Buffer Memory: 4M Address Database Size: 8K MTBF: 100,000 hours

PoE Description

IEEE 802.3af, each port power is 15.4W; Port1 to Port24 support PoE power; The even number Port(1/3/5/7/9/11/13/15/17/19/21/23) is end-span(1/2+, 3/6- line pair) power supply, the odd number port(2/4/6/8/10/12/14/16/18/20/22/24) is mid-span(4/5+, 7/8- line pair) power supply

PoE Power

Port output power is 15.4W (IEEE802.3af)

Power Supply Type

End-span type(Mid-span optional)

Network Protocols

IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control

LED Indicator Status

Power, Network, PoE working status

Power

IEEE802.3af standard, each port power is 15.4W, total power is 400W

Voltage

Input: AC100~240V 50/ 60Hz

Dimension / Weight

440 x 275 x 44.5mm; Weight:4.6kg

Working Environment

Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5% ~ 95%, non-condensing Working Altitude: 3,000 m (10,000 ft)
