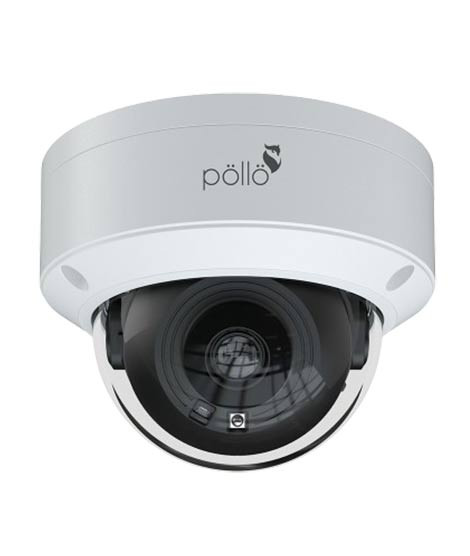

Pollo 2MP Built In Audio Dome Camera (PLC-432M-AUK-IR3/PM)

Model Number

PLC-432M-AUK-IR3/PM

Image Sensor

1 / 2.8 "CMOS

Image Size

1920×1080

Electronic Shutter

1/3s ~ 1 / 100000s

Iris Type

Fixed Iris

Min. Illumination

0.008 lux @F1.6, AGC ON; 0 lux with IR

Lens

[email protected], Horizontal FoV: 107°; Vertical FoV:56°; Diagonal FoV:126° [email protected], Horizontal FoV:89°; Vertical FoV:47.5°; Diagonal FoV:104°

Focus

Fixed

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range

Digital WDR

BLC

Yes

HLC

Yes

Digital NR

Yes

Angle Adjustment

Pan: 0°~355°; Tilt: 0°~70°; Rotation: 0°~355°

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264/ MJPEG

H.265 Compression Standard

Main [email protected] High Tier

Resolution

1080P (1920 × 1080), 720P (1280 × 720), D1, CIF

Main Stream

60Hz: 1080P/720P(1~30fps); 50Hz: 1080P/720P(1~25fps)

Sub Stream

60Hz: D1/CIF (1~30fps);50Hz: D1/CIF (1~25fps)

Bit Rate

128 Kbps ~ 4 Mbps

Bit Rate Type

VBR / CBR

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Network

RJ45

Video Output

No

Audio

1CH audio input

Storage

Built-in micro-SD card slot, up to 256GB

Reset

No

Remote Monitoring

Web browser /PVMS Plus/Pollo Live Plus

Web Browser

IE (plug-in required)/Google Chrome/Edge/Firefox/Safari

Online Connection

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro-SD card storage

Smart Alarm

Motion detection, SD card full, SD card error

Smart Event

Video Exception (scene change, video blur and video cast detection), line crossing detection and region intrusion detection

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock,

PoE

Yes (IEEE802.3af)

IR Distance

20 ~ 30 m

Ingress Protection

IP67&IK10

Power Supply

DC12V/PoE

Power Consumption

< 3.5W

Operating Environment

- 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)

Storage Environment

- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)

Dimensions ( mm )

Ø 110× 83.3

Weight ( net )

Approx. 0.5KG
