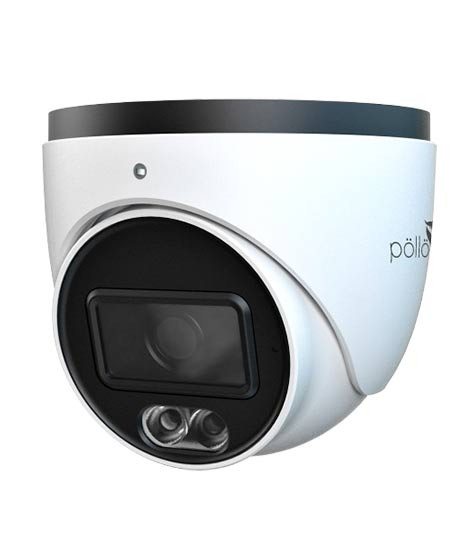

Pollo 2MP Full Colour IP Camera (PLC-432P-AU-WR3/PM)

Model

PLC-432P-AU-WR3/PM

Image sensor

1 / 2.8"CMOS

Image Size

1920 × 1080

Electronic Shutter

1 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.002 lux@ F1.0, AGC ON; 0 lux with LED ON

S/N Ratio

≥50dB

Lens

2.8 mm @F1.0, H.FoV: 105.2°; V.FoV:55.5°; D.FoV:125.1° 3.6 mm @F1.0, H.FoV: 84.6°; V.FoV:45.9°; D.FoV:100°

Focus

Fixed

Lens Mount

M12

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

No

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

1080P (1920 × 1080), 720P (1280 × 720), D1, 640 × 480, CIF, 480 × 240

Main Stream

60Hz:1080P(1~30fps)/720P(1~30fps); 50Hz:1080P(1~25fps)/720P(1~25fps)

Sub Stream

60Hz: D1/CIF/640 × 480 (1~30fps); 50HZ: D1/CIF/640 × 480 (1~25fps)

Third Stream

60Hz: D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps)

Bit Rate

128 Kbps ~ 6 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Network

RJ45

Video Output

No

Audio

1CH audio input; 1CH built-in MIC

Storage

Built-in micro-SD card slot, up to 256GB

Reset

Yes

Remote Monitoring

Web Browser/TVT NVMS2.0/NVR/mobile APP

Web Browser

IE (plug-in required)/Google Chrome/Edge/Firefox/Safari

Online Connection

Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPs, HTTP, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro-SD card storage

Smart Alarm

Motion detection, SD card error, SD card full

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern

PoE

Yes (IEEE802.3af)

White Light Range

20 ~ 30 m

Ingress Protection

IP 67

Power Supply

DC12V/PoE

Power Consumption

< 5.5W

Storage Conditions

- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)

Operating Conditions

- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)

Dimensions (mm)

Φ 94.6 × 82.8

Weight (net)

Approx. 0.45KG
