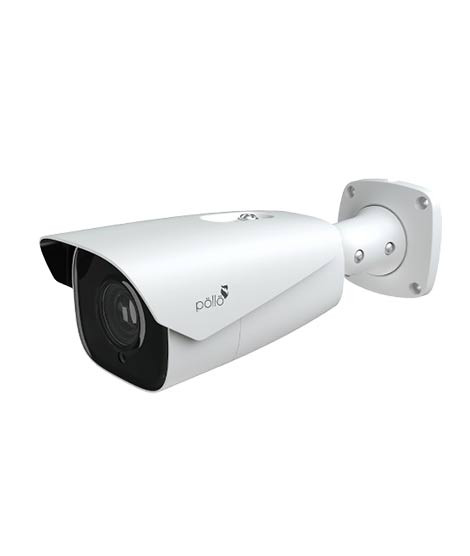

Pollo 2MP IP LPR Camera (PLC-422M-LPR-IR10/PM)

Model Number

PLC-422M-LPR-IR10/PM

Image Sensor

1 / 2.8" CMOS

Image Size

1920 × 1080

Electronic Shutter

1 / 3 s ~ 1 / 10000 s

Iris Type

DC Iris

Min. Illumination

0.0026 [email protected], AGC ON; 0 lux with IR 0.005 [email protected], AGC ON; 0 lux with IR

Lens

[email protected], motorized

Focus

motorized

Field of View

H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2°

Lens Mount

Φ14

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°

Video Compression

Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240

Main Stream

60Hz: 1080P / 720P (1 ~ 30fps);50Hz: 1080P / 720P (1 ~ 25fps) HFR Mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps)

Sub Stream

60Hz: 720P/D1/CIF/480x240 (1~30fps); 50HZ: 720P/D1/CIF/480x240 (1~25fps)

Third Stream

60Hz: D1/CIF 480x240 (1~30fps); 50HZ: D1// CIF/480x240 (1~25fps)

Bit Rate

64 Kbps ~ 6 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Network

RJ45

Video Output

No

Audio

1CH audio input; 1CH audio output

Storage

Built-in micro-SD card slot; up to 256GB

Reset

Yes

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro-SD card storage

Smart Alarm

Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection

Intelligent Analytics

Video blur detection, video colour cast detection, scene change detection, license plate recognition

General function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock

PoE

Yes, IEEE802.3af

IR Distance

70~100m

Ingress Protection

IP67

Snapshot

Overview and cut-out of plate for picture

Vehicle Plate Database

10,000

Capture Speed Range

0~70km/h

Power Supply

DC12V/PoE

Power Consumption

< 11W

Operating Environment

- 30 °C ~ 60°C (-22 °F~140°F) E42Humidity: less than 95 % non condensing

Dimensions (mm)

279.5 × 100.3 × 88.9

Weight (net)

Approx. 1.04KG
