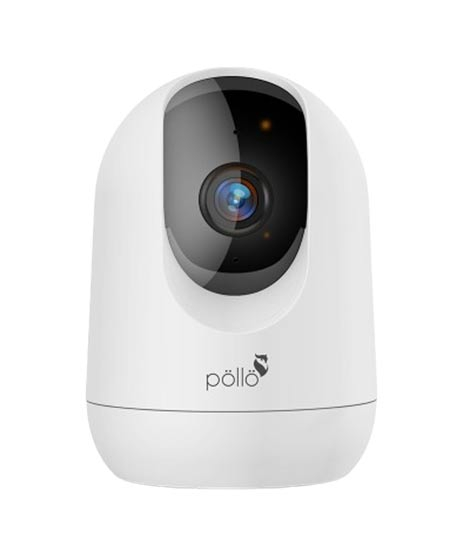

Pollo 3MP Smart 360 Degree Wi-Fi Indoor PTZ Camera (PLC-HS301)

Product model

PLC-HS301

Sensor Type

CMOS Sensor

Optics

4mm，F2.6 aperture

Form Factor

Indoor PTZ Wi-Fi Camera

Product Colour

White

Antenna

Plug-in Antenna - White Copper

Materials

ABS

Surface Finishing

matte face

Dimension(L*W*H)(mm)

Ø 77*109mm

Viewing angle

D:92°°*H:78*V:42°

Image circle

Ø6.9

Dimension

M12*22.9mm

Resolution

2304*1296 Pixel

Night Vision

10M distance

Sensory threshold

Colour cut black: 0.8Lux; black cut colour: 8.5Lux

Working Indicator

Red and blue two-colour*1

WIFI module

AB6032I

Mic

4015/Full duplex, sensitivity: ≥-38±3dBm

Speaker

2030 Oval 8Ω/1W

TF Card

Max support 128G

Button Switch

Reset*1

Antenna

Plug-in Antenna - White Copper*1

Horizontal angle

352°

Vertical angle

60°

Wifi Maximum rate

54Mbps

Wifi distance

open distance ≥120 米

Wifi standard

IEEE 802.11 b/g/n, single frequency 2.4G

Power Supply

DC 5V

Operational power consumption

Max 4.5W

I/O Input port

TF Card*1, Mic*1, USB*1

I/O Output port

Speaker*1；

I/O key type

Tact Switch*1

I/O Indicator light

Red and green indicator light*1

Video Format

H.264

Video frame rate

Day：20fps； Night： 15fps;

Resolution & frame rate

HD：2304*1296 Pixel ；SD：1080*720

Infrared night vision

10 meters black and white night vision

Switch mode

Automatic

Andorid

Android 4.3+

IOS

IOS 9.X+

Mobile APP

Cloud Edge

Cloud platform

Amazon

Language

Chinese， English， French， German， Italian， Spanish， Japanese

Basic function

Support configuration/real-time preview/screenshot/playback/intercom/video adjustment/recording/PTZ/cloud storage/format SD card

Communication Protocol

WIFI

Online visitor

Max 5 user

Type of Alarm

Alarm

Motion Detection

Support

Mobile tracking

Support

Human Body Filtering

Support

Detection Sensitivity

Level 0-10, default 6

Video tracking

Human Detection / Sound Detection

Remote control and monitoring

Support

Power failure memory

Support

Onvif

Optional

Pairing

QR code add, AP hotspot

Storage Class

Local storage, cloud storage

OTA upgade

Support

Blue light Slow flash

preview image

Blue light Always bright

Unreviewed image

Blue light Always bright

online

Blue light Slow flash

running normally

Red light Slow flash

The device enters this state when it is powered on and no network is configured。 Duration: Indicates the duration until the standby network exits

Red light Quick flash

Duration: Until the network is configured successfully

Blue light Quick flash

Until the upgrade succeeds or fails - (the green light is always on when the upgrade is successful)

Red light Red Quick flash

The network status is the same as device

Reset the device

Normal connection indicator status: Red light flashes slowly -> red light flashes quickly -> blue light is always on; The red-light flashes slowly when the network is not configured. When the user connects to the 2.4G network and scans the code for the device, the red-light flashes quickly; The red-light flashes quickly to indicate that the server is being connected; the indicator is steady blue, the network is online successfully;

Restart the device

Red slow flash>red quick flash>blue light always on

Broken network

Red Quick flash

USB Cable

1.8m USB cable

Mounting bracket

White-Wall Bracket--Universal

Screw Kit

Packaging bag+ steel screw*2

User Manual

English
