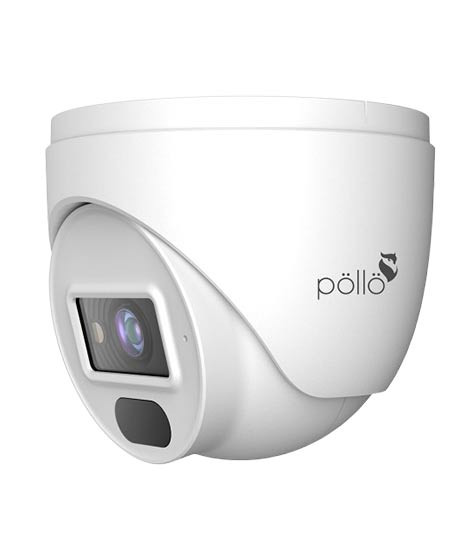

Pollo 4MP Full Colour IP Camera (PLC-434P-AU-DL3/PM)

Model

PLC-434P-AU-DL3/PM

Image sensor

1 / 3 "CMOS

Image Size

2560×1440

Electronic Shutter

1 / 3s ~ 1 / 100000s

Iris Type

Fixed Iris

Min. Illumination

0.09 lux @F2.2, AGC ON; 0 lux (Illuminator on)

Lens

[email protected], Horizontal FoV: 96°; Vertical FoV:53.7°; Diagonal FoV:112° [email protected], Horizontal FoV:74.5°; Vertical FoV:41.5°; Diagonal FoV:86.5°

Focus

Fixed

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range

Digital WDR

BLC

Yes

HLC

Yes

Digital NR

Yes

S/N Ratio

≥50dB

Angle Adjustment

Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°

Video Compression

Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 / MJPEG

H.265 Compression Standard

Main [email protected] High Tier

Resolution

4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640× 480), 480× 240, CIF

Main Stream

4MP/ 3MP/1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps)

Sub Stream

D1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)

Bit Rate

64 Kbps ~ 3 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A/U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Network

RJ45

Video Output

No

Audio

1CH built-in MIC

Remote Monitoring

Web browser /POLLO NVR/PVMS Plus/Pollo Live Plus Mobile App

Web Browser

IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

Online Connection

Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTP

Interface Protocol

ONVIF

Storage

Network remote storage

Motion Detection

Support smart motion detection; filtering motion alarm triggered by other target types except humans.

Smart Event

(Human) region intrusion detection, (human)line crossing detection

General Function

Watermark, video mask, heartbeat

Security

Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP

PoE

Yes, IEEE802.3af

Supplement Light Range

IR range: 20 ~ 30 m; white light range:20 ~ 30 m

Ingress Protection

IP67

Power Supply

DC12V/PoE

Power Consumption

< 5W

Operating Environment

- 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)

Storage Environment

- 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing)

Dimensions (mm)

Ø 94.6 × 82.8

Weight (net)

Approx. 0.46KG
