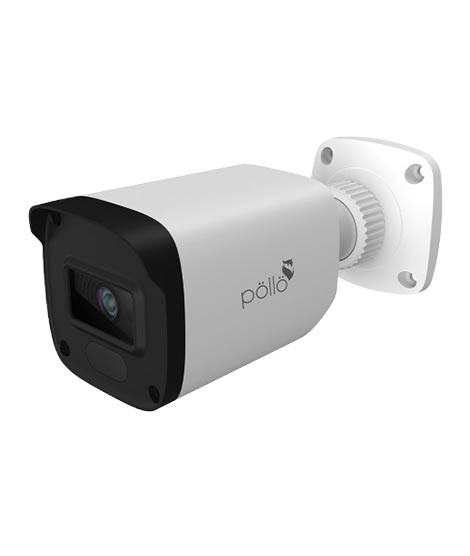

Pollo 4MP IP AI Camera (PLC-424M-AI-IR3/PM)

Model

PLC-424M-AI-IR3PM

Image sensor

1 / 3 "CMOS

Image Size

2592 × 1520

Electronic Shutter

1 / 30 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.005 [email protected], AGC ON; 0 lux with IR 0.0028 [email protected], AGC ON; 0 lux with IR

Lens

3.6 [email protected], horizontal FoV: 80.6°; vertical FoV: 50.6°; diagonal FoV:88°

Focus

Fixed

Field of View

H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2°

Lens Mount

M12

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°

Video Compression

Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296 ), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240

Main Stream

4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps)

Sub Stream

720P/D1/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)

Third Stream

D1/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)

Bit Rate

64 Kbps ~ 8 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Network

RJ45

Video Output

No

Audio

1CH audio input

Storage

Built-in micro-SD card slot; up to 128GB

Reset

Yes

Perimeter Protection

Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification)

Target Counting

Line crossing human/motor vehicle/non-motor vehicle counting

Exception Detection

Scene change, video blur and video colour cast detection

Face Detection

Face detection and face capture

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro-SD card storage

Smart Alarm

Motion detection, SD card error, SD card full

Intelligent Analytics

Video blur detection, video colour cast detection, scene change detection, license plate recognition

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock

PoE

Yes, IEEE802.3af

IR Distance

20 ~ 30 m

Ingress Protection

IP67

Power Supply

DC12V/PoE

Power Consumption

< 7.5W

Operating Environment

- 30 °C ~ 60°C (-22 °F~140°F) E42Humidity: less than 95 % non condensing

Dimensions (mm)

165.7 x 69 x 69

Weight (net)

Approx. 0.40KG
