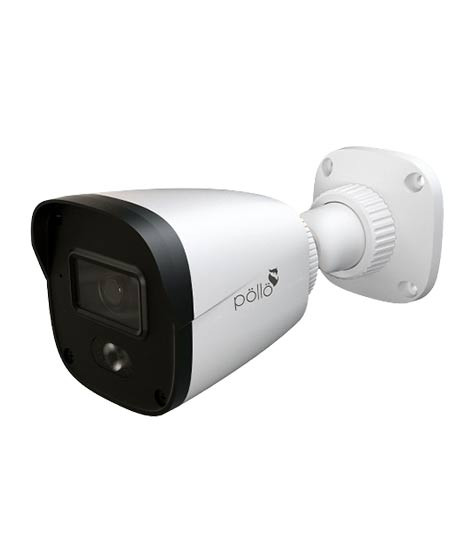

Pollo 4MP IP Camera (PLC-424P-IR2/PM)

Model

PLC-424P-IR2/PM

Image sensor

1 / 2.7 "CMOS

Image Size

2560×1440

Electronic Shutter

1 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.011 lux @F1.2, AGC ON; 0lux with IR 0.04 lux @ F2.2, AGC ON; 0lux with IR

Lens

3.6 mm @F2.2, (fixed lens), horizontal field of view: 89°

Focus

Fixed

Lens Mount

M12

Wide Dynamic Range

Digital WDR

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°

Video Compression

H.265 / H.264

H.264 Compression Standard

Main [email protected] High Tier

Resolution

4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240

Main Stream

60Hz: 4MP(1~20fps)/3MP(1~30fps)/1080P(1~30fps); 50Hz: 4MP(1~20fps)/3MP(1~25fps)/1080P(1~25fps)

Sub Stream

60Hz: 720P(1~15fps)/D1 (1~30fps)/CIF (1~30fps); 50HZ: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps);

Bit Rate

64 Kbps ~ 5 Mbps

Bit Rate Type

VBR / CBR

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Network

RJ 45

Video Output

No

Audio

No

Storage

No

Reset

No

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS

Face Detection

Face detection and face capture

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion detection

Intelligent Analytics

Region intrusion detection, video blur detection, scene change detection, line crossing detection

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock

IR Distance

10 ~ 20m

General Function

Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, corridor pattern

PoE

Yes, IEEE802.3af

IR Distance

10 ~ 20m

Ingress Protection

IP67

Power Supply

DC12V/PoE

Power Consumption

< 4W

Operating Conditions

- 20 °C ~ 55 °C (-4°F~131°F) Humidity: less than 95 % (non-condensing)

Dimensions (mm)

162.1 × 74.8 × 73.8

Weight (net)

Approx. 0.24KG
