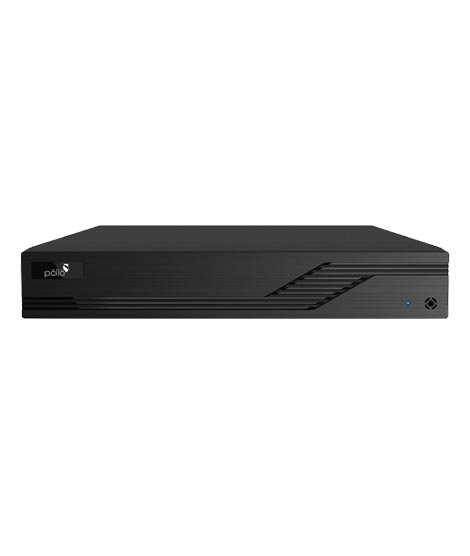

Pollo 5MP 04 Channel DVR (PLC-1504H1/PM)

SKU : TV-0022

Rs. 13,216

Delivery & Return

Sold by : TechnoCiss

0.0

0% Positive Seller Ratings

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

Pollo 5MP 04 Channel DVR Delivered All Over Pakistan

iShopping.pk brings you the best price for Pollo 5MP 04 Channel DVR (PLC-1504H1/PM) with express shipping all over Pakistan.

Specifications:

Model No	PLC-1504H1/PM
System	Embedded Linux
Analog Video Input	BNC × 4, BNC interface (1.0Vp-p; 75Ω), TVI/ AHD/CVI: 5MP/ 4MP/ 1080P/ 720P/WD1
IP Video Input	2CH, up to 5MP@25fps
Total Input	6CH
Video Output	HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS (used as the main or spot output)
Video Compression	H.264/H.265
Multi-screen Display	1/4/6/9
Audio Input	RCA ×1
Audio Output	RCA × 1 (linear, 600Ω)
Two-way audio	Take up channel one audio input
Audio Compression	G.711(U/A)
Recording Resolution	5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/WD1
Recording Frame Rate	Analog Channel: 5MP Lite :10fps; 4MP Lite/1080P: 12fps (PAL)/15fps (NTSC); 1080P Lite/ 720P/WD1: 25fps (PAL)/30fps (NTSC) IP Channel: 25fps (PAL)/30fps (NTSC)
Recording Bit Rate	32Kbps ~ 4Mbps
Recording Mode	Manual, timer, motion, smart event
Playback	4 CH
Playback Search	Time slice / time / event / tag search
Play back Smart Search	Highlight colours to display the camera record in a certain period of time, different colours refer to different record events
Play back Function	Play, pause, FF, FB, digital zoom, etc
Alarm Mode	Manual, motion, exception, smart event
Alarm Input	No
Alarm Output	No
Network Interface	RJ 45 100Mbps × 1
Network Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth	16Mbps
Outgoing Bandwidth	40Mbps
Client Connection	Max. 5 users’ access
Mobile Device OS	iOS, Android
Storage HDD	SATA× 1, up to 10TB
Local Backup	U disk, USB mobile HDD
Network Backup	Yes
RS 485	RS 485 × 1 (half-duplex)
USB	USB 2.0 × 2
Remote Controller	Optional
Power Supply	DC12V / 1.5A
Consumption	≤5W (without HDD)
Dimensions(mm)	255× 222× 42(W × D × H)
Working Environment	-10~50°C, 10%~90% (humidity)
