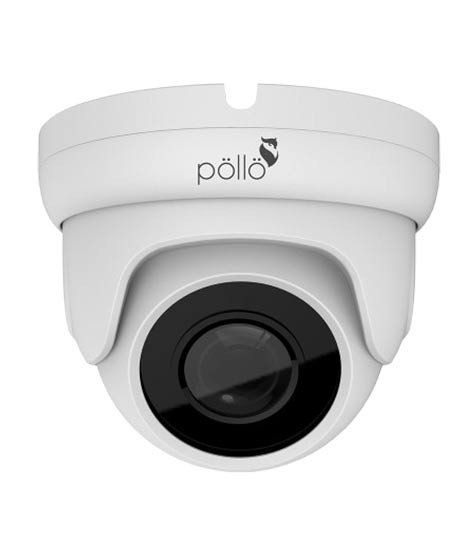

Pollo 5MP Dome Camera (PLC-435M-IR3/PR)

Model Number

PLC-435M-IR3/PR

Image Sensor

1/2.8" SONY Starvis CMOS Sensor

Image Resolution

5 MP (2616 x 1964)

Effective Pixels

2616 (H) x 1964 (V)

Video Compression

H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/25 - 1/10000 s; NTSC 1/25 - 1/10000 s

Min. Illumination

0.01 Lux

S/N Ratio

≥52 dB

Scanning System

Progressive

Video Output

Network

Reset Button

Optional

Focal Length

3.6 mm

Focus Control

Fixed

Lens Type

Fixed

Pixels

5 MP

Infrared LED

14 µ x 18 pcs

Infrared Distance

30 m

IR Status

Auto-control

IR Power On

Auto-control

Ethernet

RJ-45 (10/100 Base - T)

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP

ONVIF

Supports ONVIF 2.4

P2P

Yes, Supports QR Code

PoE

Optional, Supports IEEE 802.3af

Video Delay

0.3 s (Within Lan)

Main Stream 1

2592 * 1944 @ 20 fps

Main Stream 2

2560 * 1440 @ 25 fps

Tri-stream

352 * 288 @ 30 fps

IE Brower

IE8 - 11, Google Chrome (Lower Than Ver44), Firefox (Lower Than Ver53), Mac Safari (Lower Than Version 12)

Smart Phone

iPhone, iPad, Android, Android Pad

Day/Night

Color/ Black and White (IR-CUT)

Image Configuration

Saturation/Brightness/Contrast /Sharpness, Mirror, 3 DNR, White Balance, FLK (Flicker Control)

Corridor Pattern

Yes

Defog Mode

Yes

ROI

Yes

BLC

Yes

WDR

DWDR: 50 dB

Motion Detection

Yes

Privacy Masking

3 Rectangular Zones

Recording Mode

NVR/CMS/Web

Languages

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch

Audio

Optional

SD Card Slot

Optional, Supports Max. 128 GB

Housing

Metal

Anti-cut Bracket

No

IR Cut Filter

Yes

Operation Temperature

-20 ℃ - +60 ℃ RH 95% Max.

Ingress Protection

IP67

Power Source

DC 12 V ± 10%, 750 mA

Dimension

φ93 x 74 (H) mm

Weight

400 g
