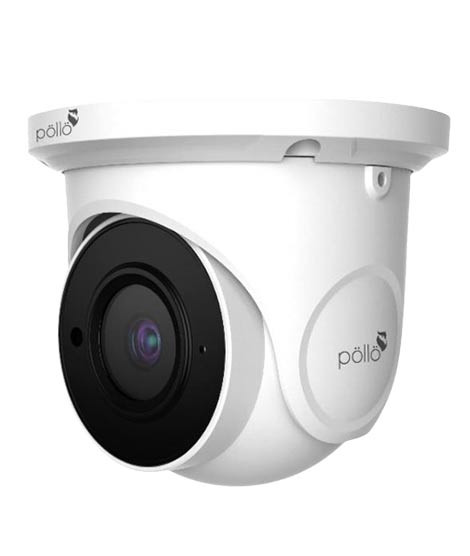

Pollo 5MP IP Camera (PLC-435M-AU-IR3/PM)

Model

PLC-435M-AU-IR3/PM

Image sensor

1 / 2.7" CMOS

Image Size

2592×1944

Electronic Shutter

1 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.0236 lux @F2.0, AGC ON; 0 lux with IR 0.0085 lux @ F1.2, AGC ON; 0 lux with IR

Lens

2.8 mm @F2.0, horizontal FoV: 93.4°; Vertical FoV: 77°; Diagonal FoV: 106°

Field of View

Horizontal: 92.7°~29.8°; Vertical: 76.4°~22.6; Diagonal: 105.4°~36.8°

Focus

Fixed

Lens Mount

M12

Wide Dynamic Range

Digital WDR

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°

Video Compression

H.265 / H.264

H.264 Compression Standard

Main [email protected] High Tier

Resolution

5MP (2592 × 1944), 4MP (2560 × 1440), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240

Main Stream

60Hz: 5MP(1~20fps)/4MP(1~30fps)/1080P(1~30fps)/ 720P(1~30fps) 50Hz: 5MP(1~20fps)/4MP（1~25fps）/1080P（1~25fps/ 720P（ 1~25fps）

Sub Stream

60Hz: 720P (1~15fps)/D1 (1~30fps)/CIF (1~30fps); 50Hz: 720P (1~12fps)/D1 (1~25fps)/CIF (1~25fps)

Third Stream

60Hz: D1/CIF/480 × 240 (1~30fps); 50Hz: D1/CIF/480 × 240 (1~25fps)

Bit Rate

64 Kbps ~ 5 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Network

RJ45

Video Output

No

Audio

1CH built-in MIC

Storage

Built-in micro-SD card slot; up to 128GB

Reset

Yes

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro-SD card storage

Smart Alarm

Motion detection

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock

PoE

Yes, IEEE802.3af

IR Distance

20~30 m

Ingress Protection

IP67

Power Supply

DC12V/PoE

Power Consumption

< 5W

Operating Conditions

- 30 °C ~ 60°C (-22 °F~140°F) E42Humidity: less than 95 % non condensing

Dimensions (mm)

Ø 108 × 95.7

Weight (net)

Approx. 0.47KG
