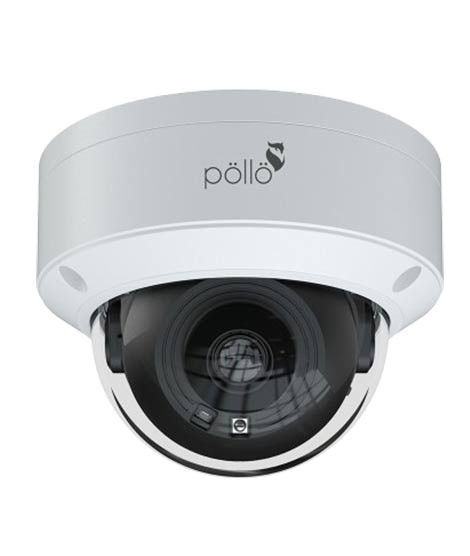

Pollo 5MP IP Camera (PLC-435M-AUK-IR3/PM)

Model

PLC-435M-AUK-IR3/PM

Image sensor

1 / 2.7 "CMOS

Image Size

2592 × 1944

Electronic Shutter

1 /3s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.02 [email protected], AGC ON; 0 lux with IR

Lens

2.8 [email protected], horizontal FoV: 99.87°; vertical FoV: 70.36°; diagonal FoV:120°

Focus

Fixed

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range

3D DNR

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~355°, Tilt: 0°~67°, Rotation: 0°~355°

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296),1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

5MP/4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps)

Sub Stream

720P/D1/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)

Third Stream

D1/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)

Bit Rate

64 Kbps ~ 8 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Perimeter Protection

Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non- motor vehicle classification)

Statistics

Target counting by line/area, heat map

Exception Detection

Scene change, video blur and video cast detection

Face Detection

Face detection and face capture

Other Events

Abandoned/missing object detection, crowd density detection

Network

RJ45

Video Output

No

Audio

1CH audio input; 1 CH built-in MIC

Storage

Built-in micro-SD card slot; up to 256GB

Reset

Yes

Alarm

1CH alarm input; 1CH alarm output

Remote Monitoring

Web Browser/PVMS Plus/NVR/mobile APP

Web Browser

IE (plug-in required)/Google Chrome/Edge/Firefox/Safari

Online Connection

Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

Weight (net)

Approx. 0.65KG
