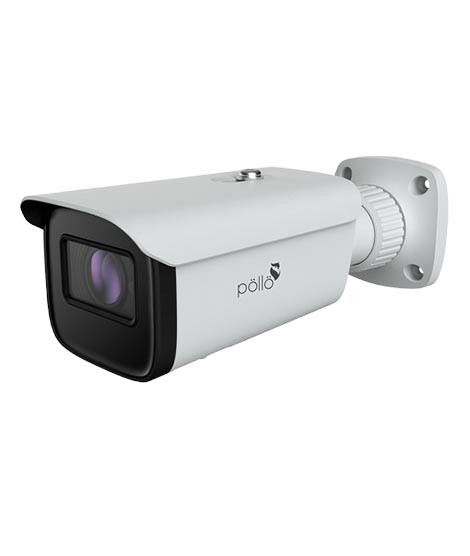

Pollo 5MP IP Motorized Camera (PLC-425M-MZ-IR5/PM)

Model

PLC-425M-MZ-IR5/PM

Image sensor

1 / 2.7" CMOS

Image Size

2880×1620

Electronic Shutter

1 / 2 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.007 lux @F1.6, AGC ON; 0 lux with IR

Lens

[email protected], motorized

Field of View

Horizontal: 100°~36.5°; Vertical: 52°~20.5; Diagonal: 116°~41°

Lens Mount

Ø14

Day & Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

S/N Ratio

≥50dB

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Main [email protected] High Tier

Resolution

5MP(2880×1620), 4MP(2560×1440), 3MP(2304×1296), 1080P(1920×1080), 720P(1280×720), D1, VGA(640× 480), 480× 240, CIF

Main Stream

5MP/4MP/3MP/1080P/720P(60Hz:1~30fps; 50Hz:1~25fps)

Sub Stream

60Hz: 720P/D1/ CIF (1~30fps);50Hz: 720P/D1/ CIF (1~25fps)

Third Stream

60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps)

Bit Rate

64 Kbps ~ 8 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browse

ROI

Each ROI to be configured separately

Network

RJ45

Video Output

No

Audio

1CH audio input; 1CH built-in MIC

Storage

Built-in micro-SD card slot; up to 256GB

Reset

Yes

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

Network Protocol

TCP/IP,UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro-SD card storage

Smart Alarm

Motion detection, SD card error, SD card full, IP address conflict, Cable connection

Smart Event

Line crossing/region intrusion (human/vehicle classification), abandoned/ missing object detection

General Function

Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction

Security

Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP

PoE

Yes

IR Distance

30 ~ 50 m

Ingress Protection

IP67

Power Supply

DC12V/PoE

Power Consumption

< 8.5W

Operating Conditions

- 30 °C ~ 60°C (-22 °F~140°F) E42Humidity: less than 95 % non condensing

Dimensions (mm)

218.1 × 79.5 × 70.4

Weight (net)

Approx. 0.70KG
