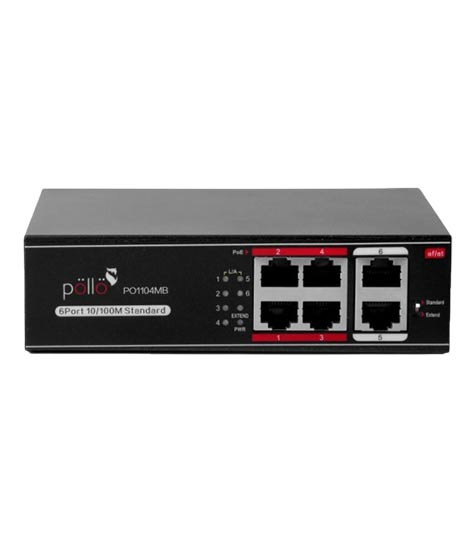

Pollo 6 Port PoE Network Switch (PLN-1104MB)

Product Model

PLN-1104MB

Fixed Port

4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data)

Ethernet Port

Port 1-6 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing

Functional Switch

1*(Extender+ CCTV) Note: when the switch state changes, it must be restarted before the PoE switch function can take effect

Twisted Pair Transmission

10BASE-TX: Cat5 or later UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter)

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

1.6Gbps (non-blocking)

Forwarding Rate@64byte

0.98Mpps

MAC

1K

Buffer Memory

768K

LED Indicator

Power: PWR (green), network: Link(yellow), PoE: PoE (green) Functional switch: EXTEND (green)

PoE Port

Port 1 to 4 IEEE802.3af/at @POE

Power Supply Pin

Default 1/2(+), 3/6(-), optional 4/5(+), 7/8(-) 2-pairs power supply

Max Power Per Port

30W, IEEE802.3af/at

Total PWR / Input Voltage

65W/ (AC100-240V)

Power Consumption

Standby<3W, Full load <65W

Power Supply

Built-in switching power supply, AC100~240V 50-60Hz 1A

Operation TEMP / Humidity

-20~+55°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+75°C;5%~95% RH Non condensing

Dimension (L*W*H)

142*114.5*40mm

Net /Gross Weight

<0.6kg / <1kg
