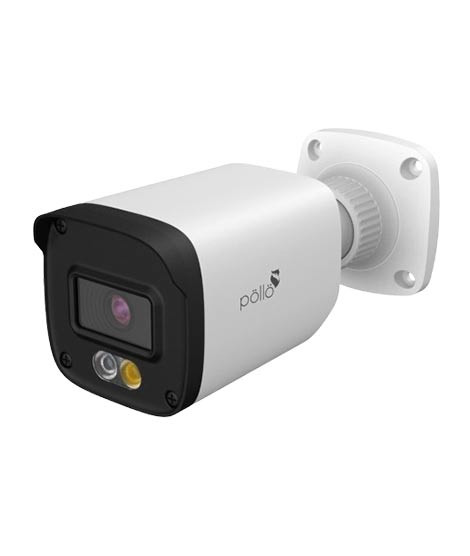

Pollo 6MP Dual Light IP Camera (PLC-426M-AU-DL3/PM)

Model

PLC-426M-AU-DL3/PM

Image Sensor

1 / 2.5 "CMOS

Image Size

3200×1800

Electronic Shutter

1/ 4 s ~ 1 / 100000s

Iris Type

Fixed Iris

Min. Illumination

0.008 lux @F1.6, AGC ON; 0 lux with illumination on

Lens

[email protected], Horizontal FoV: 104°;Vertical FoV:55°;Diagonal FoV:128° [email protected], Horizontal FoV:78°;Vertical FoV:38°;Diagonal FoV:94°

Focus

Fixed

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Digital NR

Yes

S/N Ratio

≥50dB

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360°

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG"

H.265 Compression Standard

Main [email protected] High Tier

Resolution

6MP ( 3200 × 1800 ), 4MP ( 2688× 1520), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, VGA (640× 480), 480× 240, CIF"

Main Stream

60Hz: 6MP(1~20fps) /4MP/1080P (1~30fps) 50Hz: 6MP(1~20fps) /4MP/1080P (1~25fps)

Sub Stream

720P/D1/VGA/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)

Third Stream

D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)

Bit Rate

64 Kbps ~8Mbps

Bit Rate Type

VBR / CBR

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser

Audio Compression

G711A/U

ROI

Each ROI to be configured separately

Network

RJ45

Video Output

No

Audio

1CH audio input; 1CH built-in MIC

Storage

Built-in micro SD card slot, up to 256GB

Reset

Yes

Remote Monitoring

Web browser /Pollo PVMS/Mobile APP

Web Browser

IE (plug-in required)/Google Chrome/Edge/Firefox/Safari

Online Connection

Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro SD card storage

Smart Alarm

Motion detection, SMD, SD card full, SD card error

Smart Event

Video Exception (scene change, video blur and abnormal color detection), line crossing /region intrusion detection(human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection

General Function

Watermark, IP address filtering, video mask, heartbeat, system config backup, smart supplement light, corridor pattern

PoE

Yes (IEEE802.3af)

Supplement Light Range

IR range: 20 ~ 30 m; white light range:20 ~ 30 m

Ingress Protection

IP67

Security

Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP

Power Supply

DC12V/PoE

Power Consumption

≤6.5W

Storage Conditions

- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)

Operating Conditions

- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)

Dimensions ( mm )

167.6 × 75 × 74.6

Weight ( net )

Approx. 0.45KG
