Model Specifications

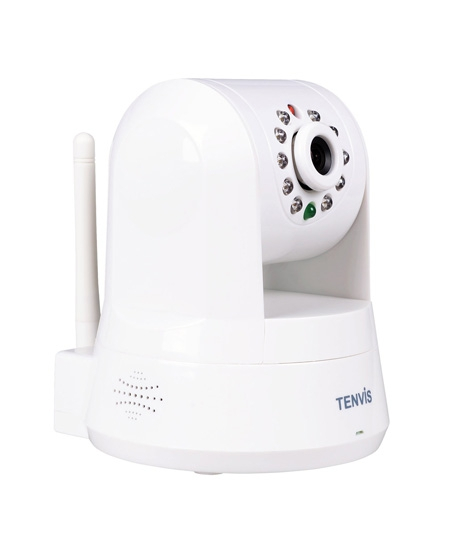

IPROBOT3


Image sensor

1/4" color CMOS

Lens

3.6 mm

Infrared LED

10 PCS

Pixel

1 megapixel

Night Vision Distance

10M (32 feet)

Video Format

H.264

Resolution Type

720P,VGA,QVGA

Digital Zoom

4*Zoom

Maximum Frame Rate

30fps

IR-CUT Filter

Y

Power Frequence

50/60HZ

AWS/AGC/AES

Auto

Audio

Audio Compression

G.711/G.726

Full-Duplex Audio

Y

Speaker Consumption

1W

PTZ

Horizontal Angle

350°

Vertical Angle

110°

Speed Stage

Faster/Normal/Slow

Preset Number

4

Network

IEEE Standard

b/g/n

Network Encryption Protocol

NONE, WEP,WPA,WPA2

Frequency Band

2.4GHZ

Effective Distance Via Wireless

15M

Network Interface

RJ-45

Wi-Fi Protected Setup

Y

AP Mode

N

Remote Access Via P2P

Y

Alarm

Motion Detection

Multiple

Motion Detection Area

Full-Screen/User-Defined

E-mail Notice

Y

Data(Image&Video) Upload FTP

Y

Data(Image&Video) Record TF Card

Y

Software

PC/OS

Windows/MAC

Protocol

TCP/IP,DHCP.ICMP,FTP,SMTP,DDNS,NTP,UPNP,

RTSP,RTP,HTTP,TCP,UDP,P2P,ONVIF,WPS

Mobile/OS

Android IOS

WEB-Browser

IE7and above,chrome,firefox safari.etc

User Authentication

Administrator/Operator/General user

Maximum User For PC/Mobile/Pad/Client

4

Multiple Language

Y

ONVIF Version

V2.1

Record&Storage

Local Storage

Y

Data Format

AVI

TF-Card

Y

NAS Storage

N

Others

Voltage/Current

5V 2A

Holder Material

ABS

Power Consumption

4W/6W

Working Temperature

-10 to +50 °C (+14 to +122 °F)

Working Humidity

10～80%RH non-condensing

Certificates

CE; FCC; RoHS
