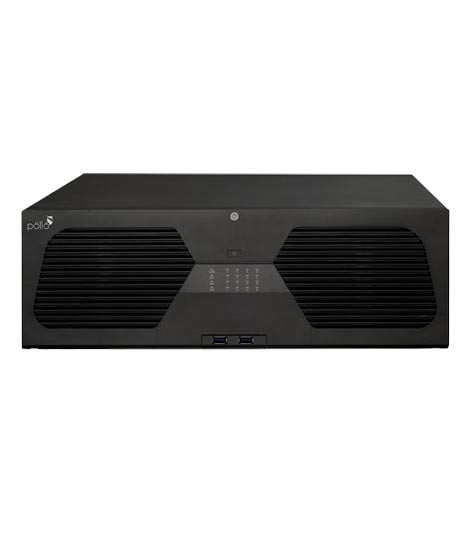

Pollo 8MP 128 Channel DVR (PLC-58128H16/PM-4K)

Model

PLC-58128H16/PM-4K

System

Embedded Linux

Video Network Input

128CH IPC input

Network Input Resolution

12MP/8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF

Video Output

HDMI × 1: 3840×2160@60fps/3840×2160@30fps/1920×1080/1280×1024 HDMI 2: 1920 × 1080/ 1280×1024 / 1024 × 768 VGA × 1: 1920×1080/1280×1024/1024×768

Compression

H.265S / H.265+ /H.265 /H.264

Multi-screen Display

1/4/6/8/9/13/16/25/32/36/64

Audio Network Input

128CH IPC audio input

2-way Audio

RCA × 1

Local Output

RCA × 1

Compression

G.711(U/A)

Decoding Capability

1CH 8MP/ 4CH 1080P

Record Stream

Dual stream recording

Resolution

12MP@20fps; 8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/ 720P/960H/D1/CIF@30fps (NTSC)/25fps (PAL

Record Mode

Manual/timed/motion/sensor/POS/AI recording

Simultaneous Playback

Max. 16 channel

Play Back Search

Time slice / time / event / tag /smart search

Play Back Smart Search

Highlighted colour to display the camera record in a certain period of time, different colours refer to different record events

Play Back Function

Play, pause, FF, FB, digital zoom, etc.

Live View/ Playback

1CH 12MP/4CH 5MP/9CH 720P/16CH 720P

Mode

Manual, sensor, motion, exception, smart events

Alarm Input

8 channel local alarm input; supports IPC alarm input

Input

4 CH

Triggering

Record, snapshot, buzzer, pre-set, e-mail, etc.

Fisheye

Supports fisheye dewarping via Web Client and mobile APP

License Plate Recognition

Yes

Interface

RJ 45 1000 Mbps × 2

Network Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc.

Incoming Bandwidth

384Mbps

Outgoing Bandwidth

384Mbps

Client Connection

Max. 20 users’ access

Mobile Device

iOS, Android

Storage

SATA ×16, max 8T; E-SATA× 1

RAID

RAID0, RAID1, RAID5, RAID6, RAID10

Local Backup

U disk, USB mobile HDD

Network Backup

Yes

USB

USB 3.0 × 1; USB 2.0 × 2

Remote Controller

Optional

RS 485

Yes (full-duplex), connect to PTZ or keyboard

Power Supply

ATX 250W

Consumption

15W (without HDD)

Dimensions (mm)

437 × 483 × 143 (W × D × H)

Working Environment

-10 ~ 50°C，10% ~ 90% humidity
