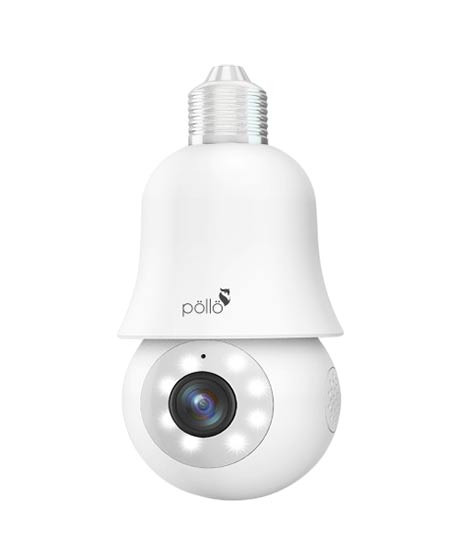

Pollo Indoor Light Bulb PTZ Camera (PLC-HS301B)

Model

PLC-HS301B

Form Factor

Indoor light bulb Camera

Product Colour

White

Antenna

Plug-in Antenna - Stainless Steel Antenna

Materials

ABS

Dimension(L*W*H) (mm)

matte face

Camera Lens

4mm，F2.3 aperture

Viewing angle

D:92°*H:77°*V:42°

Image circle

Ø6.9，1G3P

Dimension

M12*22.9mm;

Sensor Type

MIS2009

Resolution

2304*1296 Pixel

Night Vision

10M distance（850nm)

IR-LED

12pcs 3030 (infrared lamp + white light) *0.2W /10 meters (λ=850nm)

WHITE LED

white light colour temperature ≧ 6000K

IR-CUT

Pendulum IR-CUT

Sensory threshold

Colour cut black: 0.8Lux; black cut colour: 8.5Lux

Working Indicator

Red and Green two-colour*1

WIFI module

RTL8188FTV, rate Max.54Mbps, open straight-line distance ≥ 120 meters

Mic

4015/Full duplex, sensitivity: ≥-38±3dBm

Speaker

Diameter 23mm, round 8Ω/1W

TF Card

Max support 128G

Button Switch

Reset*1

Antenna

Plug-in Antenna - Stainless Steel Antenna*1

Horizontal angle

352°

Vertical angle

46.5°

Wi-Fi Maximum rate

54Mbps

Wi-Fi distance

open distance ≥120meters

Wi-Fi standard

IEEE 802.11 b/g/n, single frequency 2.4G

Power Supply

AC 100-240VAC-50/60HZ (rated value)

Operational power consumption

Max 4.5W

Input port

TF Card*1, Mic*1, E27*1

Output port

Speaker*1；

key type

Tact Switch*1

Indicator light

FDD/LTE-FDDRed and green indicator light*1

Echo cancellation

Support

Two-Way Talk

Support

Start-up the bell

Support

Reset the bell

Support

Effective Volume

Indication tone 75dB @ 0.5m

Compression method

G.711a，ADPCM

Video Format

H.265

Video frame rate

Day：15fps； Night： 15fps;

Resolution & frame rate

2304*1296 Pixel

Infrared night vision

10 meters black and white night vision

Full color night vision

Support

Switch mode

Automatic

Android

Android 4.3+

IOS

IOS 9.X+

Mobile APP

Cloud Edge

Cloud platform

Amazon

Language

China, English, France, Germany, Italy, Spanish, Japan

Basic function

Support configuration/real-time browsing/screenshot/playback/cloud platform/intercom/volume/video adjustment/recording/album/format SD card

Communication Protocol

WIFI

On line visitor

Max 5 users

Type of Alarm

Timing alarm, area alarm, push alarm

Motion Detection

Support

Mobile tracking

Support

Human Body Filtering

Support

Detection Sensitivity

Level 0-10, default 6

Video tracking

HD/SD

Remote control and monitoring

Support

Power failure memory

Support

Onvif

Support

Pairing

QR code add, AP hotspot

Live browsing

Open the mobile APP, activate the camera, and the drawing time is less than 3 seconds

Storage Class

Local storage, cloud storage

OTA upgrade

Support

Internet working green light Slow flash

preview image

Internet working green light Always bright

Un-previewed image

Running Green light Always bright

networking

Running Green light Slow flash

running normally

Network status to be configured red light Slow flash

The device enters this state when it is powered on and no network is configured Duration: until exiting the network to be configured state

Distribution network status red light Quick flash

Duration: Until the network is configured successfully

Upgrade status green light Quick flash

Until the upgrade succeeds or fails - (the green light is always on when the upgrade is successful)

offline status red light Red Quick flash

The network status is the same as device

Reset button

The device resets and enters the distribution network state

Definition of button time

Long press: more than 5S

Reset the device

Indicator status for normal connection: Slow flashing red light -> fast flashing red light -> steady green light The red-light flashes slowly and the network is not configured. After the user connects to the 2.4G network and scans the code for the device, the red-light flashes quickly. The red-light flashes quickly to indicate that it is connecting to the server The green light is always on, indicating that the device has successfully configured the network and is in the online state

Restart the device

Slow flashing red light > fast flashing red light > steady green light

Broken networke

Red light Quick flash

Bulb Holder

E27
