Model Specifications

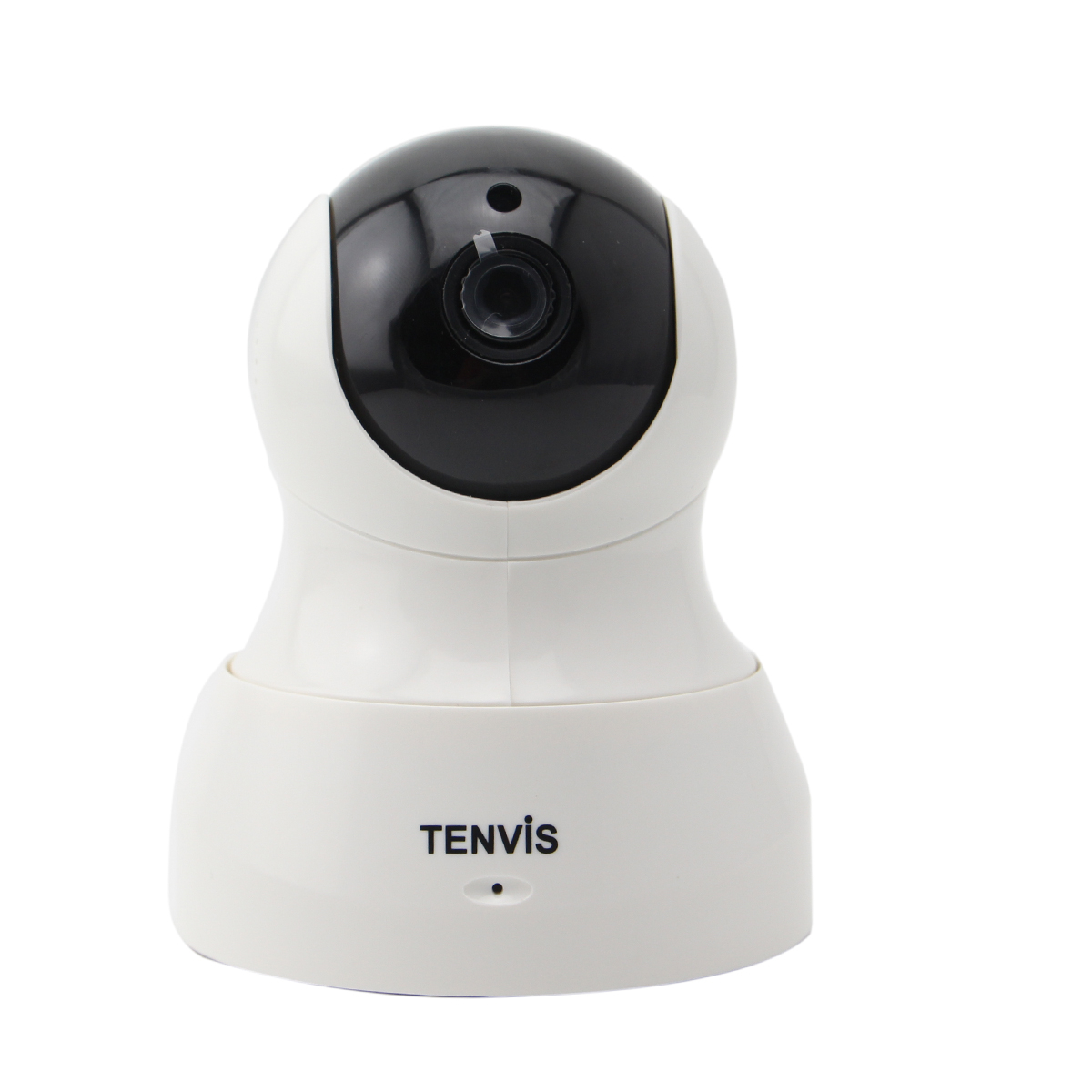

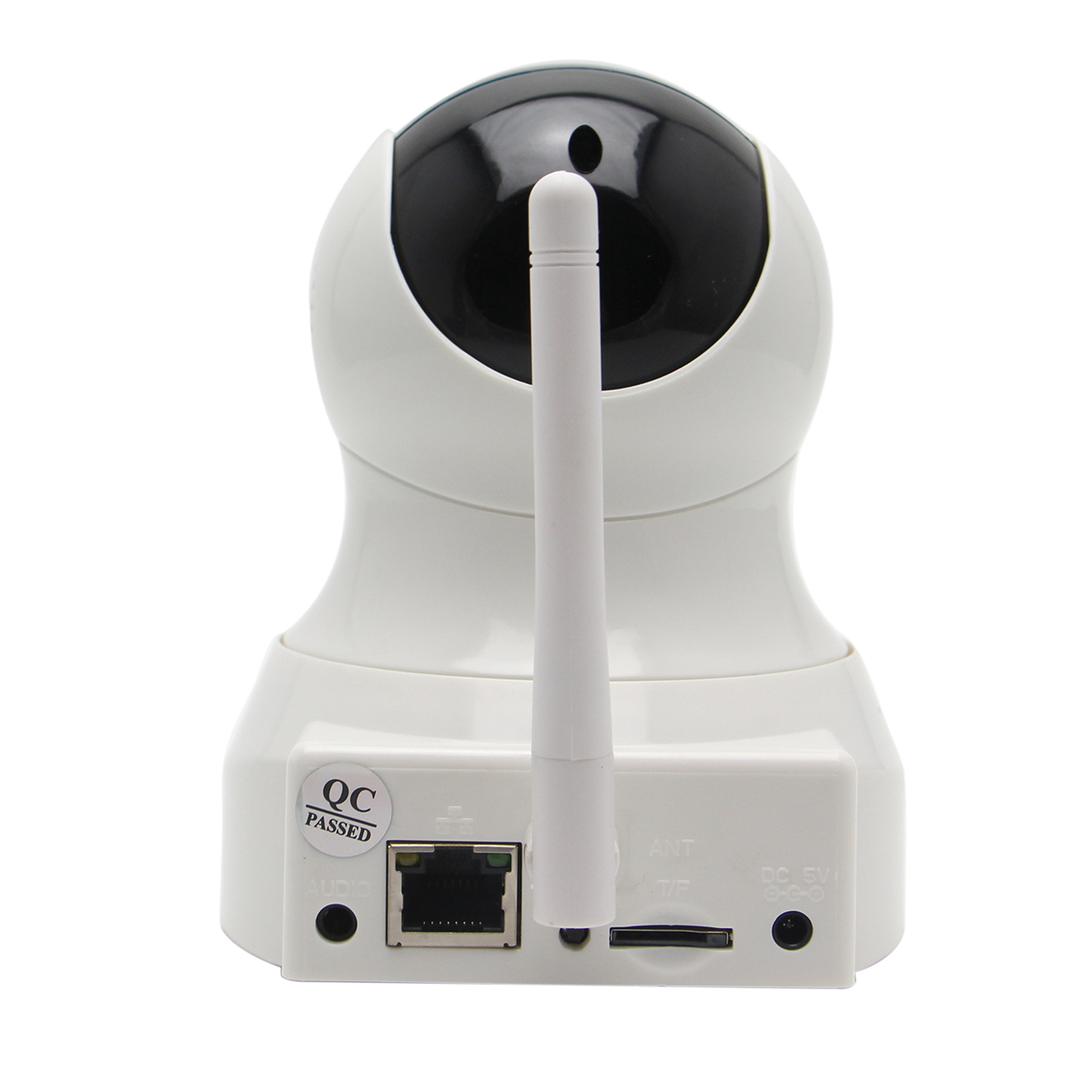

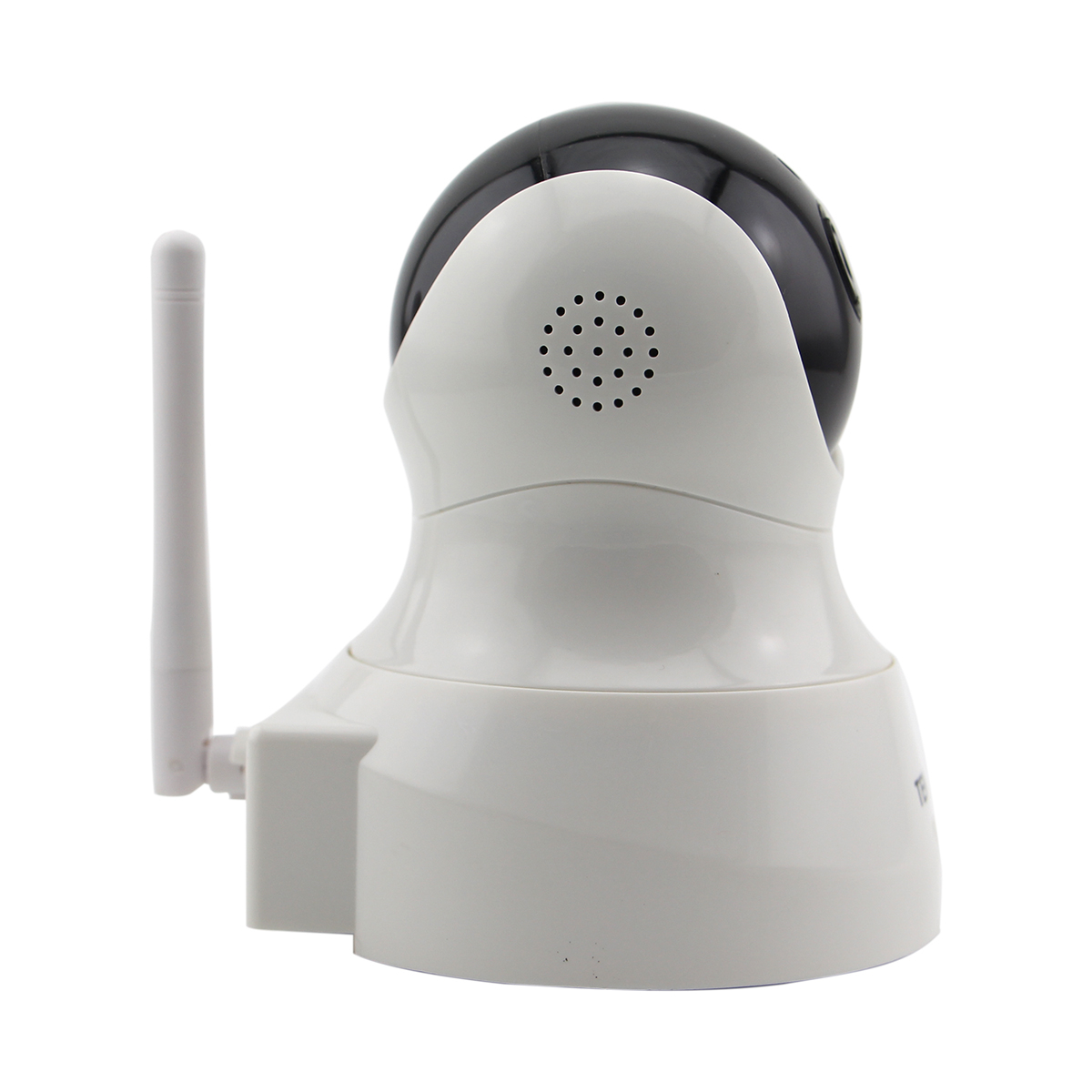

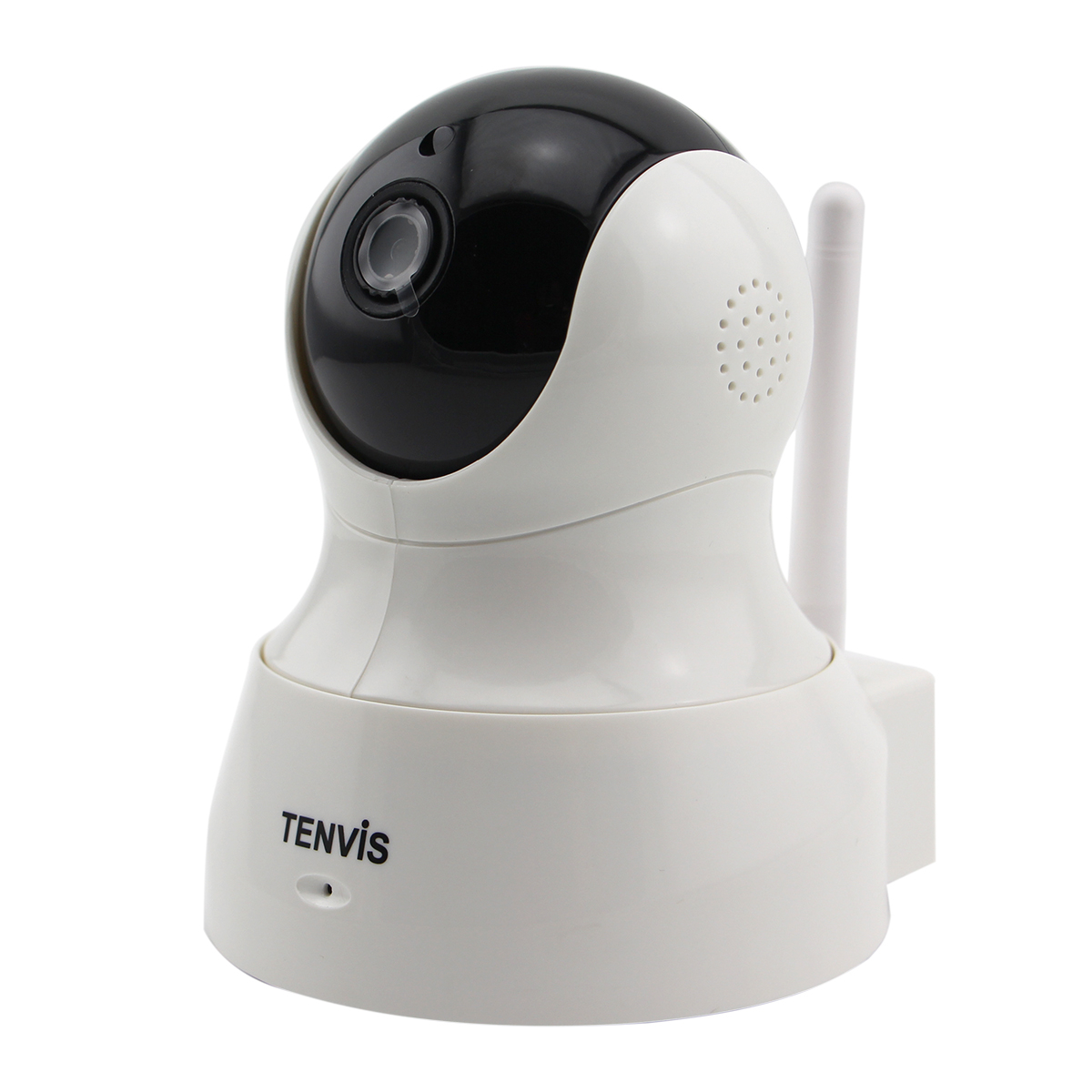

TH661

Image sensor

Sensor

High Definition Color CMOS Sensor

Display Resolution

1280 x 720 (1Megapixel)

Min. Illumination

0.1 Lux (With IR Illuminator)

Lens

Lens Type

6 Glass Lens

Focal length

f:3.6mm

Aperture

F1.8

Angle of View

71°

Video

Image Compression

H.264

Image Frame Rate

25fps maxmium

Resolution

720P(1280 x 720), VGA(640 x 360), QVGA(320 x 180)

Stream

Dual Stream

Flip image

Flip and Mirror

Pan/Tilt Angle

Horizontal:340° & Vertical: 90°

Infrared LED

Built-in10pcs IR-LEDs

Night Vision Distance

 8 M

Audio

Input/Output

Two-way Audio, Built-in Mic & Speaker

Audio Compression

G.711/G.726

Network

Ethernet

One 10/100Mbps

Wireless Standard

IEEE802.11b/g/n

Wireless Security

WEP, WPA, WPA2

Network Protocol

IP、TCP、UDP、HTTP、SMTP、FTP、DHCP、DDNS、RTSP、WPS

System Requirements

Operating System

Microsoft Windows XP, WIN7, Mac OS, iOS, Android

Browser

Microsoft IE7 and above version;Mozilla Firefox;

Google Chrome;Apple Safari

Main Features

Motion Detection

Alarm via E-Mail, upload alarm snapshot to FTP

User Accounts

Two levels user role

Reset

Reset button is available

Power

Power Supply

DC 5V/2.0A

Power Consumption

7.5 Watts (Max.)

Environment

OperatingTemperature

-20° ~ 55°C  (-4°F ~ 131°F)

Operating Humidity

20% ~ 85% non-condensing

Storage Temperature

 -20°C ~ 60° (-4°F ~ 140°F)

Storage Humidity

0% ~ 90% non-condensing

Others

Package Dimension

200(L)*180(W)*120(H) mm

Certification

CE, FCC, RoHS
