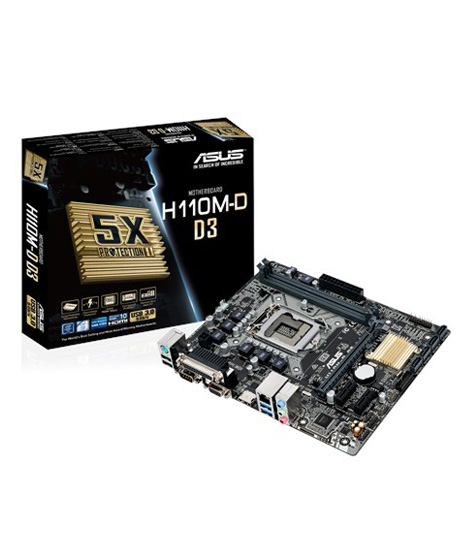

Asus H110M-D 6th Generation LGA1151 DDR4 Motherboard

SKU : ED-0176-MP

Rs. 8,999

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping brings you the best Price for Asus H110M-D 6th Generation LGA1151 DDR4 Motherboard with 3 years official warranty and free shipping all over Pakistan.

Features:

• 5X Protection II – Advanced hardware safeguards for all-around protection
• DDR4 memory compatibility
• Epic gaming audio with LED-illuminated shielding
• Media-acclaimed UEFI BIOS with EZ Flash 3
• Fan Xpert: Active Quiet & Cool

Specification:

CPU	Intel® for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
	Supports Intel® 14 nm CPU
	Supports Intel® Turbo Boost Technology 2.0
	* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® H110
Memory	2 x DIMM, Max. 32GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports Intel® Extreme Memory Profile (XMP)
	* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
	* The maximum memory frequency supported varies by processor.
Graphic	Integrated Graphics Processor- Intel® HD Graphics support
	Multi-VGA output support : HDMI/RGB ports
	- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
	- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
	Maximum shared memory of 1024 MB
	Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots	1 x PCIe 3.0/2.0 x1 (x16 mode)
Expansion Slots	2 x PCIe 2.0 x1
Storage	Intel® H110 Chipset :
Storage	4 x SATA 6Gb/s port(s), gray,
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *1
Audio	- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature	- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
	- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
	- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
	- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports	Intel® H110 chipset :
USB Ports	4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H110 chipset	6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
Special Features
ASUS EPU	- EPU
ASUS Exclusive Features	- GPU Boost
	- AI Suite 3
	- Ai Charger
	- Anti-Surge
	- Low EMI Solution
	- USB 3.0 Boost
	- EZ XMP ASUS Exclusive Features
	- Mobo Connect
	- PC Cleaner
ASUS Quiet Thermal Solution	- Stylish Fanless Design Heat-sink solution
ASUS Quiet Thermal Solution	- ASUS Fan Xpert
ASUS EZ DIY	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- Push Notice
ASUS Q-Design	- ASUS Q-Slot
ASUS Q-Design	- ASUS Q-DIMM
Operating System Support	Windows® 10 , 64bit
	Windows® 8.1 , 64bit
	Windows® 7 , 32bit/64bit *2
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s)
	1 x D-Sub
	1 x HDMI
	1 x LAN (RJ45) port(s)
	2 x USB 3.0 (blue)
	2 x USB 2.0
	1 x COM port(s)
	1 x Parallel port(s)
	3 x Audio jack(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue)
	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
	4 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s) (1 x 4 -pin)
	1 x Chassis Fan connector(s) (1 x 4 -pin)
	1 x S/PDIF out header(s)
	1 x 24-pin EATX Power connector(s)
	1 x Front panel audio connector(s) (AAFP)
	1 x 4-pin ATX 12V Power connector(s)
	1 x System panel(s) (Chassis intrusion header is inbuilt)
	1 x Clear CMOS jumper(s)
	1 x 14-1 pin TPM connector
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
BIOS	ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc	Drivers
	ASUS Utilities
	ASUS EZ Update
	Anti-virus software (OEM version)
Form Factor	uATX Form Factor
Form Factor	8.9 inch x 7.3 inch ( 22.62 cm x 18.55 cm )
Note	*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
Note	*2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.

Dependable Stability

Advanced Hardware Safeguards

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard

Pumped-up throughput. 2.5X higher surge tolerance.

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.

DIGI+ VRM

Precision control for stable power

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.

ESD Guards

Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

DDR4 Support

Make your memory go faster

With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

Instant front-panel USB 3.0 Experience

We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

Q-Slot

Effortless PCI Express component removal

The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM

Easy memory removal

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Fan Xpert

Dedicated CPU and case fan controls

Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

AI Suite 3

One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Intel® H110 Chipset

Intel® chipset is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, Intel® H110 chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
