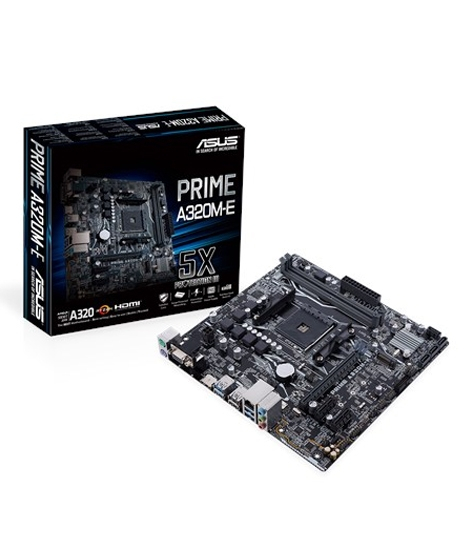

Asus PRIME A320M-E AMD uATX Motherboard

SKU : ED-0542-MP

Rs. 14,345

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for Asus PRIME A320M-E AMD uATX Motherboard with express shipping all over Pakistan.

Features:

• 5X Protection III: Multiple hardware safeguards for all-round protection
• LED illumination: Lighting control for audio trace paths
• Native M.2: Lightning-fast storage speeds
• Onboard USB 3.1: Latest connectivity for ultrafast 10Gbps transfers
• One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3

Specifications:

CPU	AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
CPU	Supports CPU up to 8 cores
Chipset	AMD A320
Memory	AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
	2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
	AMD 7th Generation A-Series/Athlon X4 Processors
	2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	ECC Memory (ECC mode) support varies by CPU.
	* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Graphic	Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU *1
	Multi-VGA output support : HDMI/DVI-D/RGB ports
	- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
	- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
	- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
	Maximum shared memory of 2048 MB (for iGPU exclusively)
Expansion Slots	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
	1 x PCIe 3.0/2.0 x16 (x16 mode)
	AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
	1 x PCIe 3.0/2.0 x16 (x8 mode)
	AMD Athlon™ with Radeon™ Vega Graphics Processors
	1 x PCIe 3.0/2.0 x16 (max at x4 mode)
	AMD A320 chipset
	2 x PCIe 2.0 x1
Storage	AMD A320 chipset :
	4 x SATA 6Gb/s port(s), gray,
	Support Raid 0, 1, 10
	AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
	AMD Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series/ Athlon™ X4Processors :
	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC
USB Ports	AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon™ X4 Processors :
	4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
	AMD A320 chipset :
	2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
	ASMedia® USB 3.1 Gen 2 controller :
	1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A)
	AMD A320 chipset :
	4 x USB 2.0 port(s) (4 at mid-board)
Special Features	ASUS 5X Protection III :
	- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
	- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
	- ASUS Overvoltage Protection: World-class circuit-protecting power design
	- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
	- ASUS DIGI+ VRM: 6 Phase digital power design
	ASUS Exclusive Features :
	- AI Suite 3
	- Ai Charger
	ASUS Quiet Thermal Solution :
	- Stylish Fanless Design Heat-sink solution
	- ASUS Fan Xpert
	ASUS EZ DIY :
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- Multi-language BIOS
	ASUS Q-Design :
	- ASUS Q-Slot
	- ASUS Q-DIMM
Back I/O Ports	1 x PS/2 keyboard (purple)
	1 x PS/2 mouse (green)
	1 x DVI-D
	1 x D-Sub
	1 x HDMI
	1 x LAN (RJ45) port(s)
	1 x USB 3.1 Gen 2 (teal blue)
	4 x USB 3.1 Gen 1 (blue)
	3 x Audio jack(s)
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
	1 x COM port(s) connector(s)
	4 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s) (1 x 4 -pin)
	1 x Chassis Fan connector(s) (1 x 4 -pin)
	1 x S/PDIF out header(s)
	1 x 24-pin EATX Power connector(s)
	1 x 4-pin ATX 12V Power connector(s)
	1 x Front panel audio connector(s) (AAFP)
	1 x System panel(s)
	1 x Clear CMOS jumper(s)
	1 x Speaker connector
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
	Operating System
	Windows® 10 64-bit
	Windows® 7 64-bit *2
Form Factor	mATX Form Factor
Form Factor	8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Note	*1：AMD Ryzen™ Processor does not support
Note	*2:Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.
