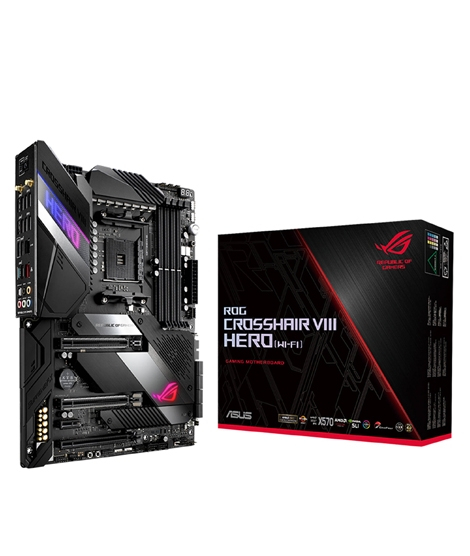

Asus ROG Crosshair VIII Hero WIFI AMD AM4 ATX Gaming Motherboard

SKU : ED-0636-MP

Rs. 93,707

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for Asus ROG Crosshair VIII Hero WIFI AMD AM4 ATX Gaming Motherboard with express shipping all over Pakistan.

Features:

AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.

Comprehensive thermal design: Active chipset heatsink, M.2 aluminum heatsink and ROG Cooling Zone.

Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors.

High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software.

5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.

DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and premium components for maximum endurance.

Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers.

Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.

Specifications:

CPU
Chipset	AMD X570
CPU Socket	AM4
Back Panel I/O
USB	4 x USB 3.1 / USB 3.2 Gen 1 Type-A
	7 x USB 3.1 / USB 3.2 Gen 2 Type-A
	1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Thunderbolt	None
Display	None
Audio	5 x 3.5 mm
Audio	1 x S/PDIF
Ethernet / Controller	1 x Intel I211-AT Gigabit
Ethernet / Controller	1 x Realtek RTL8125-CG 2.5Gigabit
Wi-Fi Antenna	2 x Connector
Buttons	BIOS Flashback, Clear CMOS
Memory
Memory Slots	4 x 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
Storage Expansion
SATA	8 x SATA III
M.2	1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
M.2	1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III)
U.2	None
RAID Support	RAID 0, 1, 10
Internal I/O
Expansion Slots	3 x PCIe 4.0 x16
Expansion Slots	1 x PCIe 4.0 x1
USB	2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
	1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Ports)
	1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Ports)
Multi-GPU Support	3-Way NVIDIA SLI
Multi-GPU Support	3-Way AMD CrossFireX
Air Cooling	1 x 4-Pin CPU
	2 x 4-Pin Assistant
	3 x 4-Pin System
	1 x Thermal Sensor
	1 x 2-Pin W_IN
	1 x 2-Pin W_OUT
	1 x 3-Pin W_FLOW
Liquid Cooling	2 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard
	1 x 8-Pin CPU
	1 x 4-Pin CPU
Security	TPM Module
LED Header	4 x RGB
Audio	1 x Speaker
Diagnostics	LN Mode, Reset, ReTry, Safe Boot, Slow Mode, Start
BIOS
ROM	256 Mb
Front Panel I/O
I/O Connection Headers	AAFP
Audio
Audio Codec	SupremeFX S1220 (8-Channel)
DAC	ESS ES9023P
Wireless
Bluetooth	5
Wi-Fi	Wi-Fi 6 (802.11ax) (MU-MIMO)
Module Support	1 E Key M.2
Software
Supported Operating Systems	Windows 10 (64-Bit)
Physical
Form Factor	ATX
Dimensions	9.6 x 12" / 243.84 x 304.80 mm
