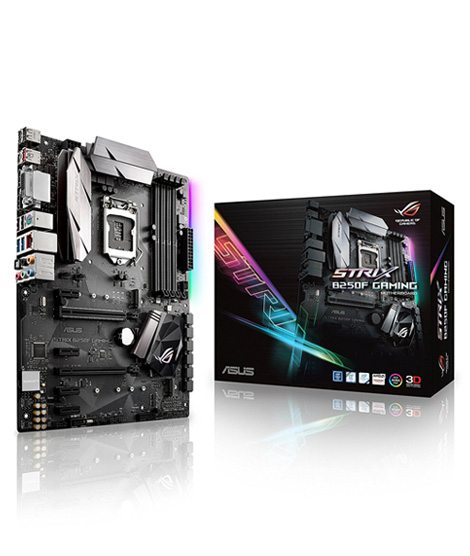

Asus ROG Strix B250F 7th/6th Generation ATX Gaming Motherboard

SKU : ED-0011-MP

Rs. 16,999

Delivery & Return

3 Years Official

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for Asus ROG Strix B250F 7th/6th Generation ATX Gaming Motherboard with 3 years official warranty and express shipping all over Pakistan.

Specification:

CPU	Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
	Supports Intel® 14 nm CPU
	Supports Intel® Turbo Boost Technology 2.0
	* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® B250
Memory	4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports Intel® Extreme Memory Profile (XMP)
	* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
	** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Graphic	Integrated Graphics Processor- Intel® HD Graphics support
	Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
	- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
	- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
	- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
	Maximum shared memory of 1024 MB
	Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
	Supports up to 3 displays simultaneously
	DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	1 x PCIe 3.0/2.0 x16 (x16 mode)
	1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
	4 x PCIe 3.0/2.0 x1
Storage	Intel® B250 Chipset :
	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*2
	1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3
	6 x SATA 6Gb/s port(s)
LAN	Intel® I219V
	Anti-surge LANGuard
	ROG GameFirst Technology
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
	- Dual Headphone Amplifiers
	- Impedance sense for front and rear headphone outputs
	- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	- SupremeFX Shielding Technology
	- Supports up to 32-Bit/192kHz playback *4
	Audio Feature :
	- Optical S/PDIF out port(s) at back panel
	- Sonic Radar III
	- Sonic Studio III
USB Ports	Intel® B250 Chipset :
	6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
	Intel® B250 Chipset : *5
	6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
	ASMedia® USB 3.1 controller :
	2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)
ROG Exclusive Features	ROG RAMCache II
	ROG CPU-Z
	ROG CloneDrive
	Overwolf
	GameFirst IV
	ROG Aura
	- Aura Lighting Control
	- Aura RGB Strip Headers
Special Features	Gamer's Guardian:
	- DRAM Overcurrent Protection
	- Stainless Steel Back I/O
	- Highly Durable Components
	- DIGI+ VRM
	- SafeSlot
	ASUS Exclusive Features :
	- AI Suite 3
	- Ai Charger
	- ESD Guards
	ASUS EZ DIY :
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	ASUS Q-Design :
	- ASUS Q-Shield
	- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
	- ASUS Q-Slot
	- ASUS Q-DIMM
	Gaming Aesthetics :
	- 3D printing friendly
	- AURA-RGB Lighting
	Performance Optimization :
	- DIGI + VRM
	- GPU Boost
	- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
	- AI Suite 3
	M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s)
	1 x DVI-D
	1 x DisplayPort
	1 x HDMI
	1 x LAN (RJ45) port(s)
	2 x USB 3.1 Type-A + Type-C
	2 x USB 3.0 (blue)
	4 x USB 2.0
	1 x Optical S/PDIF out
	5 x Audio jack(s)
Internal I/O Ports	1 x AAFP connector
	1 x RGB Header(s)
	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
	1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
	1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (Support SATA mode only)
	6 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s)
	1 x CPU OPT Fan connector(s)
	2 x Chassis Fan connector(s)
	1 x AIO_PUMP connector
	1 x 24-pin EATX Power connector(s)
	1 x 8-pin ATX 12V Power connector(s)
	1 x System panel(s) (Chassis intrusion header is inbuilt)
	1 x Clear CMOS jumper(s)
	1 x 5-pin EXT_FAN(Extension Fan) connector
	1 x ROG extension (ROG_EXT) header(s)
	1 x 14-1 pin TPM connector
	1 x COM port header
	1 x T_Sensor Connector
	3 x 3D Mount screw port(s)
Accessories	User's manual
	ASUS Q-Shield
	4 x SATA 6Gb/s cable(s)
	1 x M.2 Screw Package
	1 x Supporting DVD
	1 x ROG Strix stickers
	1 x 10 in 1 ROG Cable Label(s)
	1 x Extension Cable for RGB strips (80 cm)
	1 x 3D printing mount package
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability	WfM2.0, DMI3.0, WOL by PME, PXE
Operating System	Windows® 10 64-bit
	Windows® 8.1 64-bit *7
	Windows® 7 32-bit *7
	Windows® 7 64-bit *7
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Features:

ASUS ROG STRIX B250F GAMING LGA1151 DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1

• The successor to Pro Gaming motherboards
• FanXpert 4 allows for dynamic fan calibration and optimized system cooling while gaming
• Unmatched personalization with ASUS exclusive AURA Sync RGB lighting, an additional RGB header and a 3D-printing friendly mount
• Maximize your connectivity and speed with Dual M.2, front panel USB 3.1 and Intel® Optane™ Memory compatibility
• Patent-pending SafeSlot features an injection molding process that integrates metal framing for a stronger, firmly anchored • PCIe slot built for heavyweight GPUs
• Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors

ROG Strix B250 motherboards continue the proud legacy of the Pro Gaming series with acclaimed ROG innovations. ROG Strix B250F Gaming motherboards combine bold aesthetics with premier performance and incredible audio to deliver unrivaled gaming experiences and style. Support for the latest Intel processors and technologies, plus exclusive ROG innovations, take performance to the next level to give you the edge against opponents. ROG Strix B250F charges every movement of every game with thrilling energy and equips you with epic speed and agility. Join the Republic with ROG Strix B250F Gaming and dominate your game!

AURA LIGHTING CONTROL

Create your own custom LED lighting effects with the intuitive Aura software. Cast a stunning multi-color glow across your build with the powerful RGB LEDs built in to ROG Strix B250F Gaming, or attach a separate RGB strip using the onboard 4-pin header. Fire up Aura and enjoy the creative freedom of twelve different lighting themes.

OUTSHINE THE COMPETITION:

ASUS Aura Sync RGB LED technology makes ROG Strix B250F Gaming the control hub for your illumination ambitions — so it's easy to synchronize incredible lighting effects between compatible components, including RGB LED strips, graphics cards, keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow the illumination effects smoothly across all synchronized devices.

SCAN AND DETECT TO DOMINATE

SONIC RADAR III

We've given Sonic Radar III an overhaul, evolving the audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you — and we've even added an onscreen arrow to help you pinpoint the enemy's position instantly! See the origin of key in-game sounds and hone your enemy-pinpointing skills. Plus the new audio boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!

COOLER BY DESIGN

Play quieter and cooler with advanced fan and water-pump controls for the ultimate in undisturbed gaming. With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 4 makes sure every fan achieves the best balance of high cooling performance and low noise -- so you enjoy all the performance you demand with none of the racket

SPEED YOUR GAME LOADS

Uniquely intelligent technology that effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache II turns milliseconds into microseconds to boost game-load times -- and of course it's compatible with the latest NVM Express

Beyond VR ready:

ROG Strix B250F Gaming isn't just VR Ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that ROG Strix B250F Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance after you've taken off the headset. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.
