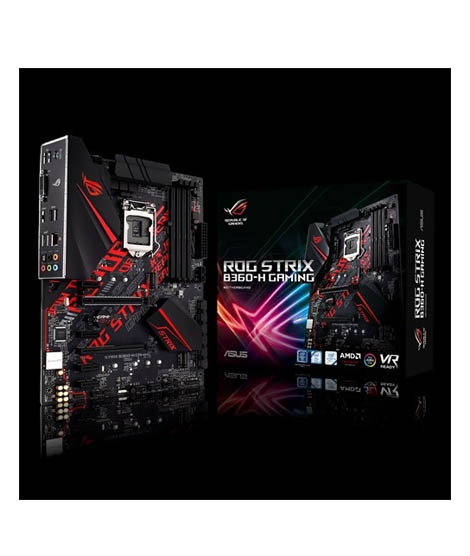

Asus ROG STRIX B360-H Gaming 8th Generation ATX Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for Asus ROG STRIX B360-H Gaming 8th Generation ATX Motherboard with express shipping all over Pakistan.
Features:
• LGA1151 socket: Ready for 8th Gen Intel® Core™ desktop processors.
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.
• Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
• Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
• Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
• Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
• Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play.
Specifications:
|
CPU |
Intel® Socket 1151 for 8th Generation Core™ Processors |
|
Supports Intel® 14 nm CPU |
|
|
Supports Intel® Turbo Boost Technology 2.0 |
|
|
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
|
|
* Refer to www.asus.com for CPU support list |
|
|
Chipset |
Intel® B360 |
|
Memory |
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory |
|
Dual Channel Memory Architecture |
|
|
Supports Intel® Extreme Memory Profile (XMP) |
|
|
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
|
|
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|
|
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
|
|
Graphic |
Integrated Graphics Processor- Intel® HD Graphics support |
|
Multi-VGA output support : HDMI/DVI-D ports |
|
|
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz |
|
|
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
|
|
Multi-GPU Support |
|
|
Supports AMD 2-Way CrossFireX Technology |
|
|
Expansion Slots |
2 x PCIe 3.0/2.0 x16 (x16/x4) *1 |
|
4 x PCIe 3.0/2.0 x1 *2 |
|
|
Storage |
Intel® B360 Chipset : |
|
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*3 |
|
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 |
|
|
6 x SATA 6Gb/s port(s) |
|
|
Intel® Optane™ Memory Ready *5 |
|
|
LAN |
Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) |
|
Anti-surge LANGuard |
|
|
ROG GameFirst Technology |
|
|
Audio |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
|
- Dual OP Amplifiers |
|
|
- Impedance sense for front and rear headphone outputs |
|
|
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
|
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input |
|
|
- Supports up to 32-Bit/192kHz playback |
|
|
Audio Feature : |
|
|
- SupremeFX Shielding™ Technology |
|
|
- Optical S/PDIF out port(s) at back panel |
|
|
- Sonic Radar III |
|
|
- Sonic Studio III + Sonic Studio Link |
|
|
USB Ports |
Intel® B360 Chipset : *6 |
|
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) |
|
|
Intel® B360 Chipset : |
|
|
4 x USB 3.1 Gen 1 port(s) |
|
|
Intel® B360 Chipset : |
|
|
6 x USB 2.0 port(s) |
|
|
ROG Exclusive Features |
ROG RAMCache II |
|
ROG CPU-Z |
|
|
ROG CloneDrive |
|
|
Overwolf |
|
|
GameFirst IV |
|
|
Special Features |
Gamer's Guardian: |
|
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports |
|
|
- DRAM Overcurrent Protection |
|
|
- Stainless Steel Back I/O |
|
|
- Highly Durable Components |
|
|
- DIGI+ VRM |
|
|
- SafeSlot |
|
|
AURA : |
|
|
- Aura Lighting Control |
|
|
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices |
|
|
ASUS Exclusive Features : |
|
|
- AI Suite 3 |
|
|
- Ai Charger |
|
|
ASUS Quiet Thermal Solution : |
|
|
- ASUS Fan Xpert 4 |
|
|
ASUS EZ DIY : |
|
|
- ASUS CrashFree BIOS 3 |
|
|
- ASUS EZ Flash 3 |
|
|
ASUS Q-Design : |
|
|
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) |
|
|
- ASUS Q-Slot |
|
|
- ASUS Q-DIMM |
|
|
Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) |
|
1 x DVI-D |
|
|
1 x HDMI |
|
|
1 x LAN (RJ45) port(s) |
|
|
2 x USB 3.1 Gen 2 (red)Type-A, |
|
|
2 x USB 3.1 Gen 1 (blue) , |
|
|
2 x USB 2.0 |
|
|
1 x Optical S/PDIF out |
|
|
5 x Audio jack(s) |
|
|
Internal I/O Ports |
1 x AAFP connector |
|
1 x Aura RGB Strip Header |
|
|
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) |
|
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
|
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) |
|
|
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
|
|
1 x TPM connector(s) |
|
|
6 x SATA 6Gb/s connector(s) |
|
|
1 x CPU Fan connector(s) (1 x 4 -pin) |
|
|
1 x CPU OPT Fan connector(s) (1 x 4 -pin) |
|
|
2 x Chassis Fan connector(s) (2 x 4 -pin) |
|
|
1 x AIO_PUMP connector |
|
|
1 x 24-pin EATX Power connector(s) |
|
|
1 x 8-pin ATX 12V Power connector(s) |
|
|
1 x Clear CMOS jumper(s) |
|
|
1 x System panel connector |
|
|
1 x Thermal sensor connector |
|
|
Accessories |
User's manual |
|
4 x SATA 6Gb/s cable(s) |
|
|
2 x M.2 Screw Package |
|
|
1 x Supporting DVD |
|
|
1 x Strix door hanger |
|
|
1 x ROG Strix stickers |
|
|
1 x Cable ties pack(s) |
|
|
1 x Extension Cable for RGB strips (80 cm) |
|
|
BIOS |
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS |
|
ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 |
|
|
PrintScreen, F4 AURA ON/OFF and F9 Search |
|
|
Manageability |
WOL, PXE |
|
Support Disc |
|
|
Drivers |
|
|
ASUS Utilities |
|
|
EZ Update |
|
|
Anti-virus software (OEM version) |
|
|
Operating System |
Windows® 10 64-bit |
|
Form Factor |
|
|
ATX Form Factor |
|
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
|
Note |
*1 PCIe x16_2 slot shares bandwidth with PCIe x1_3 and PCIe x1_4 slots. When PCIe x1_3 and PCIe x1_4 slots are |
|
occupied, PCIe x16_2 slot runs at x2 mode. |
|
|
*2 When both PCIe x1_1 and PCIe x1_2 slots are occupied, only the device installed in the PCIe x1_1 slot can be |
|
|
detected. Adjust BIOS settings to use PCIe x1_2 slot. |
|
|
*3 The M.2_1 socket shares bandwidth with SATA_2 port when using M.2 SATA mode device. Adjust BIOS settings to use |
|
|
SATA device. |
|
|
*4 The M.2_2 socket supports Intel® Optane™ Technology. Intel® Optane™ Technology only supported when using |
|
|
8th Generation Intel® Processors. Before using Intel® Optane™ memory modules, ensure that you have updated your |
|
|
motherboard drivers and BIOS to the latest version from ASUS support website. |
|
|
*5 Intel® Optane™ Memory is only available on M.2_2 slot. |
|
|
*6 Supports 3A power output, one at a time only. |
