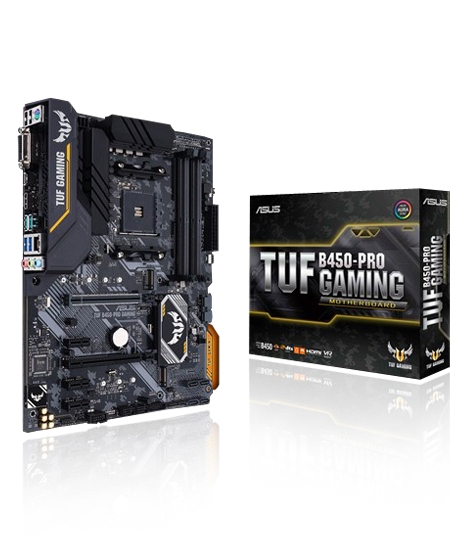

Asus TUF B450-PRO AMD AM4 ATX Gaming Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for Asus TUF B450-PRO AMD AM4 ATX Gaming Motherboard with express shipping all over Pakistan.
AMD B450 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 3533MHz support, Dual M.2, and native USB 3.1 Gen 2.
• Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
• Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
• GPU Temperature Sensing & Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
• TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
• Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Specifications:
|
CPU |
AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors |
|
Chipset |
AMD B450 |
|
Memory |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors |
|
4 x DIMM, Max. 64GB, DDR4 3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory |
|
|
Dual Channel Memory Architecture |
|
|
ECC Memory (ECC mode) support varies by CPU. |
|
|
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
|
|
Graphic |
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
|
Multi-VGA output support : HDMI/DVI-D ports |
|
|
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz |
|
|
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
|
|
Multi-GPU Support |
Supports AMD CrossFireX™ Technology |
|
Expansion Slots |
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors |
|
1 x PCIe 3.0/2.0 x16 (x16 mode) |
|
|
AMD Ryzen™ with Radeon™ Vega Graphics Processor |
|
|
1 x PCIe 3.0/2.0 x16 (x8 mode) |
|
|
AMD Athlon™ with Radeon™ Vega Graphics Processors |
|
|
1 x PCIe 3.0/2.0 x16 (x4 mode) |
|
|
AMD B450 chipset |
|
|
1 x PCIe 2.0 x16 (max at x4 mode) *1 |
|
|
3 x PCIe 2.0 x1 |
|
|
Storage |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : |
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 |
|
|
AMD Athlon™ with Radeon™ Vega Graphics Processors : |
|
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2 |
|
|
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : |
|
|
2 x SATA 6Gb/s port(s) |
|
|
Support Raid 0, 1, 10 |
|
|
AMD B450 chipset : |
|
|
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*3 |
|
|
4 x SATA 6Gb/s port(s) |
|
|
Support Raid 0, 1, 10 |
|
|
LAN |
Realtek® RTL8111H |
|
TUF LANGuard |
|
|
Audio |
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *4 |
|
Audio Feature : |
|
|
- Exclusive DTS Custom for GAMING Headsets. |
|
|
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference |
|
|
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals |
|
|
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
|
|
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
|
|
USB Ports |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : |
|
2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) |
|
|
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : |
|
|
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) |
|
|
AMD B450 chipset : |
|
|
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) |
|
|
AMD B450 chipset : |
|
|
2 x USB 3.1 Gen 1 port(s) (2 at mid-board) |
|
|
AMD B450 chipset : |
|
|
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
|
|
Special Features |
ASUS TUF PROTECTION |
|
- ASUS SafeSlot: Protect your graphics card Investment |
|
|
- ASUS Overvoltage Protection: World-class circuit-protecting power design |
|
|
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! |
|
|
- ASUS DIGI+ VRM: Precision control for stable power |
|
|
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! |
|
|
AURA : |
|
|
- Aura Lighting Control |
|
|
- Aura RGB Strip Headers |
|
|
ASUS Exclusive Features : |
|
|
- AI Suite 3 |
|
|
- Ai Charger |
|
|
- PC Cleaner |
|
|
ASUS Quiet Thermal Solution : |
|
|
- Stylish Fanless Design Heat-sink solution & MOS Heatsink |
|
|
- ASUS Fan Xpert 4 Core |
|
|
ASUS EZ DIY : |
|
|
- ASUS CrashFree BIOS 3 |
|
|
- ASUS EZ Flash 3 |
|
|
- ASUS UEFI BIOS EZ Mode |
|
|
ASUS Q-Design : |
|
|
- ASUS Q-Slot |
|
|
- ASUS Q-DIMM |
|
|
Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) |
|
1 x DVI-D |
|
|
1 x HDMI |
|
|
1 x LAN (RJ45) port(s) |
|
|
1 x 5Gb/s port(s) USB Type-CTM |
|
|
2 x USB 3.1 Gen 2 (teal blue)Type-A, |
|
|
2 x USB 3.1 Gen 1 (blue) Type-A |
|
|
2 x USB 2.0 |
|
|
3 x Audio jack(s) |
|
|
Internal I/O Ports |
2 x Aura RGB Strip Header |
|
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) |
|
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
|
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
|
|
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode) |
|
|
6 x SATA 6Gb/s connector(s) |
|
|
1 x CPU Fan connector(s) (1 x 4 -pin) |
|
|
3 x Chassis Fan connector(s) (3 x 4 -pin) |
|
|
1 x AIO_PUMP connector (1 x 4 -pin) |
|
|
1 x S/PDIF out header(s) |
|
|
1 x 24-pin EATX Power connector(s) |
|
|
1 x 8-pin ATX 12V Power connector(s) |
|
|
1 x Front panel audio connector(s) (AAFP) |
|
|
1 x System panel(s) |
|
|
1 x Clear CMOS jumper(s) |
|
|
1 x COM port header |
|
|
Accessories |
User's manual |
|
I/O Shield |
|
|
2 x SATA 6Gb/s cable(s) |
|
|
1 x M.2 Screw Package |
|
|
1 x Supporting DVD |
|
|
1 x TUF GAMING Sticker |
|
|
1 x TUF Certification card(s) |
|
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
|
Manageability |
WOL by PME, PXE |
|
Operating System |
Windows® 10 64-bit |
|
Windows® 7 64-bit *5 |
|
|
Form Factor |
ATX Form Factor |
|
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
|
Note |
*1 PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket. |
|
PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots. |
|
|
PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots. |
|
|
*2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. |
|
|
*3 PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket. |
|
|
*4 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
|
|
*5 Install an AMD Ryzen™ 2nd Generatione or Ryzen™ 1st Generation Processors to support Windows 7 64-bit operating system. |
