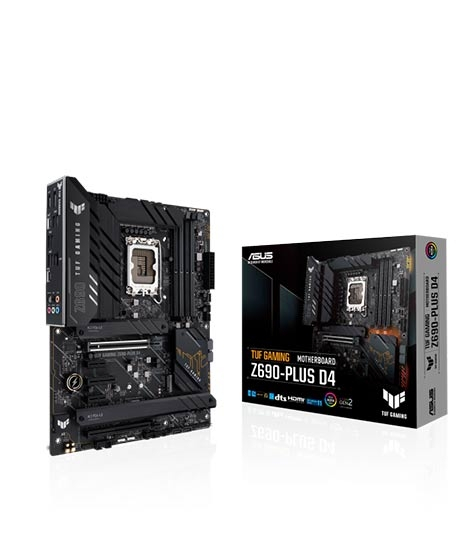

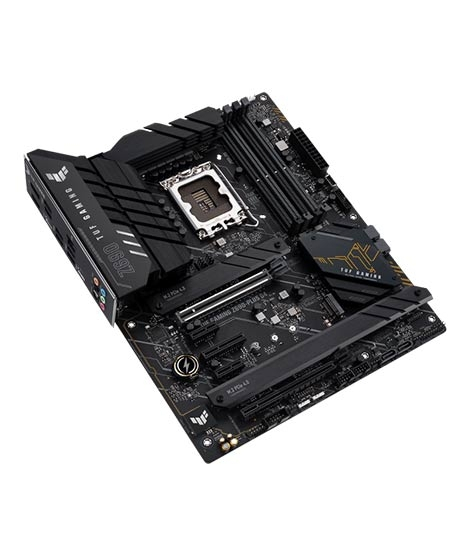

Asus TUF Z690-Plus D4 Intel LGA 1700 ATX Gaming Motherboard

SKU : ED-1401-MP

Rs. 156,250

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

Asus ATX Gaming Motherboard Delivered All Over Pakistan

iShopping.pk brings you the best price for Asus TUF Z690-Plus D4 Intel LGA 1700 ATX Gaming Motherboard with express shipping all over Pakistan.

Specifications:

CPU
Chipset	Intel Z690
CPU Socket	LGA 1700

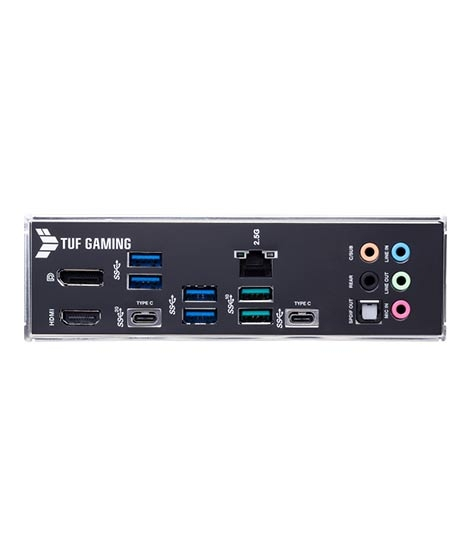

Back Panel I/O
USB	1 x USB 3.2 Gen 2×2 Type-C
	2 x USB 3.1 / USB 3.2 Gen 2 Type-A
	1 x USB 3.1 / USB 3.2 Gen 1 Type-C
	4 x USB 3.1 / USB 3.2 Gen 1 Type-A
Display	1 x DisplayPort
Display	1 x HDMI
Audio	5 x 3.5 mm
Audio	1 x S/PDIF
Ethernet / Controller	1 x Intel 2.5Gigabit
Wi-Fi Antenna	2 x Connector
Memory
Memory Slots	4 x 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5000, 5133, 5333 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered
Storage Expansion
SATA	4 x SATA III
M.2	2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
	1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
	1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
U.2	None
Optane Memory Support	Yes
RAID Support	RAID 0, 1, 5 (M.2)
RAID Support	RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots	1 x PCIe 5.0 x16
	1 x PCIe 3.0 x16
	1 x PCIe 3.0 x4
	1 x PCIe 4.0 x1
USB	1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
	1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
	2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support	None
Air Cooling	1 x 4-Pin CPU
	1 x 4-Pin Assistant
	4 x 3-Pin Chassis
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard
	1 x 8-Pin ATX
	1 x 4-Pin ATX
Security	Chassis Intrusion
LED Header	4 x RGB
Audio	None
Diagnostics	Clear CMOS
Add-On	1 x Thunderbolt Card Header
Legacy	1 x Serial
BIOS
ROM	192 Mb
Front Panel I/O
I/O Connection Headers	AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2
Audio
Audio Codec	Realtek (7.1-Channel)
Wireless
Bluetooth	5.2
Wi-Fi	Wi-Fi 6 (802.11ax)
Software
Supported Operating Systems	Windows 11 (64-Bit)
Supported Operating Systems	Windows 10 (64-Bit)
Physical
Form Factor	ATX
Dimensions	9.2 x 12″ / 23.4 x 30.5 cm
