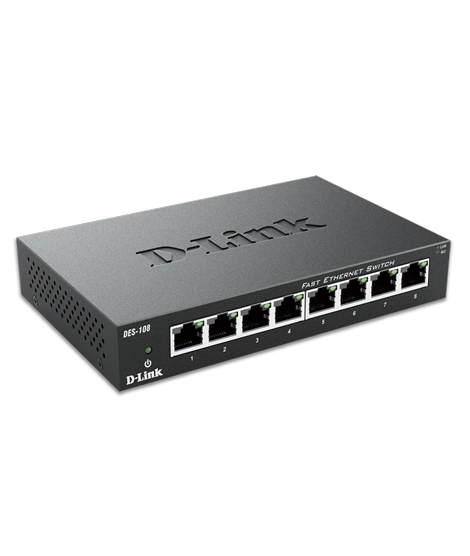

D-Link 8-Port 10/100 Unmanaged Metal Desktop Switch (DES-108)

SKU : DS-0199-MP

Rs. 1,699

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for D-Link 8-Port 10/100 Unmanaged Metal Desktop Switch (DES-108) with express shipping all over Pakistan

The DES-108 is a 8-port 10/100 Switch which provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations.

Specifications:

Switching Fabric	1.6 Gbps
Standards	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
	IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
	ANSI/IEEE 802.3 NWay auto-negotiation
	IEEE 802.3x Flow Control
	IEEE 802.1p QoS
	IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol	CSMA/CD
Data Transfer Rates	Ethernet:
	10 Mbps (half duplex)
	20 Mbps (half duplex)
	Fast Ethernet:
	100 Mbps (half duplex)
	200 Mbps (half duplex)
Network Cables	10BASE-T:
	UTP CAT 3, 4, 5/5e (100 m max.)
	EIA/TIA-586 100-ohm STP (100 m max.)
	100BASE-TX:
	UTP CAT 5/5e (100 m max.)
	EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange	Auto MDI/MDIX adjustment for all ports
LED Indicators	Per port: Link/Activity
LED Indicators	Per device: Power
Transmission Method	Store-and-forward
MAC Address Table	1K
MAC Address Learning	Automatic update
Packet Filtering/Forwarding Rates	Ethernet: 14,880 pps per port
Packet Filtering/Forwarding Rates	Fast Ethernet: 148,800 pps per port
RAM Buffer	768 KBytes per device
Jumbo Frames	2048 Bytes
QoS	4 Queues, strict mode
DC Input	External 5 V/0.55A Level "V" Power Adapter
Power Consumption	Power On (Standby):
	DC input: 0.25 watts
	AC input: 0.3 watts
	Maximum:
	DC input: 1.3 watts
	AC input: 2.4 watts
Heat Dissipation	Power On (Standby) AC input: 1.0236 BTU/h
	Maximum DC input: 4.4356 BTU/h
MTBF	863,878 hours
Operating Temperature	32° to 104°F (0° to 40°C)
Storage Temperature	14° to 158°F (-10° to 70°C)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing

Effortless High Speed Networking

Features easy access auto sensing 10/100 front Ethernet ports with two LED indicators per port to quickly distinguish link status and speed. The DES-108 switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organizes and prioritizes time-sensitive and important data for efficient delivery.

Think Green

The DES-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power.

IEEE 802.1p QoS

QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

Environmentally Friendly

The DES-108 switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. It is built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an Energy Star Level V qualified power adapter all with recyclable packaging making this product truly environmental friendly.
