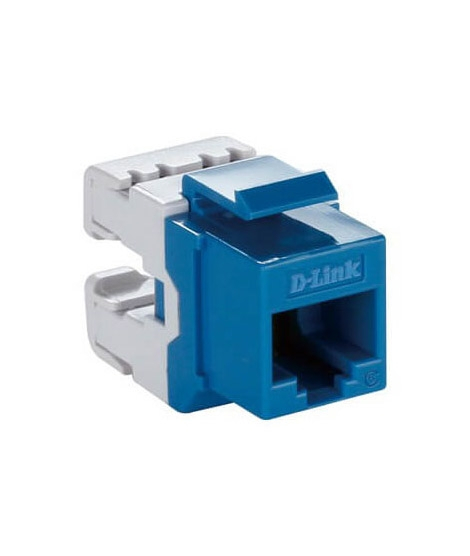

D-Link Cat6 UTP Keystone Jack Blue (NKJ-C6BLU1B21)

SKU : ARA1-0602

Rs. 420

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

D-Link Cat6 UTP Keystone Jack Delivered all over Pakistan

iShopping.pk brings you the best price for D-Link Cat6 UTP Keystone Jack Blue (NKJ-C6BLU1B21) with express shipping all over Pakistan.

Details:

• RJ45 8P 8C 180˚C 50u Punch down Jack
• Terminating 4 pairs, 22-26 AWG Cable
• Universal labels color coded for T568A and T568B wiring schemes
• Fitting high density keystone panel
• UL, ETL certified

Specifications:

RJ45 Jack:
Housing: ABS+PC, UL 94V-0, with optional color Contact Bracket: PC, UL 94V-2, transparent

RJ45 Jack Contact:
Material: Phosphor Bronze with Nickel Plated Finish: 50 micro-inch Gold Plated on plug contact area

IDC: Housing:
PC + Glass Fiber, UL 94V-2 Terminal: Phosphor Bronze, Tin Plated
IDC CAP: ABS, UL 94V-0

Performance:

• T568A & T568B wiring sticker
• Insertion force: 20N max (IEC 60603-7-4)
• Retention strength: 7.7 kg between jack and plug
• Operation temperature: -10˚C to 60̊C (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2)
• Life (Mating Cycles): Jack: 750 cycle min (ISO/IEC 11801, IEC 60603-7-4)
• IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools
• The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568 C.2 standard
