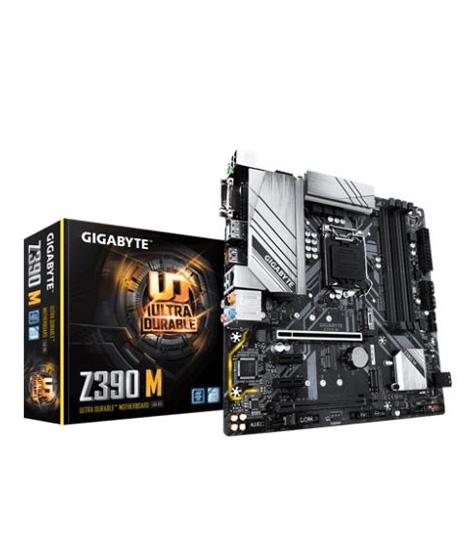

Gigabyte Z390 M Ultra Durable 8th/9th Generation Motherboard

SKU : ED-0666-MP

Rs. 32,100

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for Gigabyte Z390 M Ultra Durable 8th/9th Generation Motherboard with express shipping all over Pakistan

Specifications:

CPU	1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
CPU	2. L3 cache varies with CPU
Chipset	Intel® Z390 Express Chipset
Memory	1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
	2. Dual channel memory architecture
	3. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support	1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
	* The DVI-D port does not support D-Sub connection by adapter.
	2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
	3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
	* Support for HDMI 1.4 version and HDCP 2.2.
	Maximum shared memory of 1 GB
	Actual support may vary by CPU.
Audio	1. Realtek® ALC892 codec
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	4. Support for S/PDIF Out
LAN	Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
	3. 2 x PCI Express x1 slots
	(All of the PCI Express slots conform to PCI Express 3.0 standard.)
	4. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
Chipset	1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
	2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
	3. 6 x SATA 6Gb/s connectors
	4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB	1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
	2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
	3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	4. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 2 x M.2 Socket 3 connectors
	4. 6 x SATA 6Gb/s connectors
	5. 1 x CPU fan header
	6. 3 x system fan headers
	7. 1 x RGB LED strip header
	8. 1 x front panel header
	9. 1 x front panel audio header
	10. 1 x USB 3.1 Gen 1 header
	11. 2 x USB 2.0/1.1 headers
	12. 1 x S/PDIF Out header
	13. 1 x Thunderbolt™ add-in card connector
	14. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
	15. 1 x serial port header
	16. 1 x Clear CMOS jumpe
Back Panel Connectors	1. 1 x PS/2 keyboard/mouse port
	2. 1 x DVI-D port
	3. 1 x DisplayPort
	4. 1 x HDMI port
	5. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
	6. 1 x USB 3.1 Gen 2 Type-A port (red)
	7. 2 x USB 3.1 Gen 1 ports
	8. 2 x USB 2.0/1.1 ports
	9. 1 x RJ-45 port
	10. 6 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Overheating warning
	5. Fan fail warning
	6. Fan speed control
BIOS	1. 2 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. Support for DualBIOS™
	4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Support for APP Center	1. Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	3D OSD
	@BIOS
	Ambient LED
	AutoGreen
	Cloud Station
	EasyTune
	Easy RAID
	Fast Boot
	Game Boost
	ON/OFF Charge
	Platform Power Management
	Smart Backup
	Smart Keyboard
	Smart TimeLock
	Smart HUD
	Smart Survey
	System Information Viewer
	USB Blocker
	2. Support for Q-Flash
	3. Support for Xpress Install
Bundled Software	1. Norton® Internet Security (OEM version)
Bundled Software	2. cFosSpeed
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry’s Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

NVMe PCIe Gen3 x4 22110/2280 M.2 Connectors (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Advanced Thermal Design MOSFET Heatsinks

Multiple cuts on heatsinks improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic

Thick Thermal Pad

By using 1.5mm thicker thermal pad with well contact, more efficient heat dissipation.

Support for DDR4 to 4133MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility to 4133MHz and beyond.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

GIGABYTE EXCELLENCE

With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.
