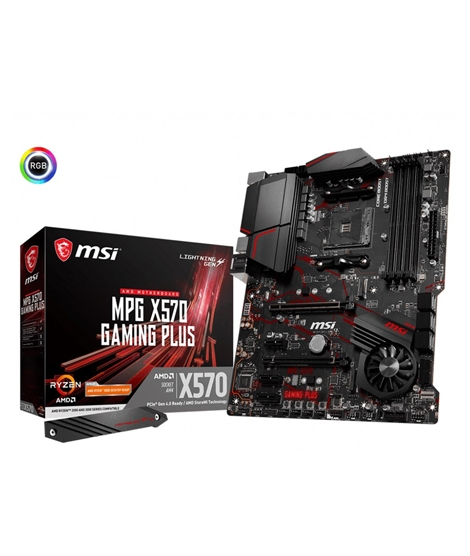

MSI MPG X570 AMD Ryzen AM4 ATX Gaming Plus Motherboard

SKU : IP-0214-MP

Rs. 45,149

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for MSI MPG X570 AMD Ryzen AM4 ATX Gaming Plus Motherboard with express shipping all over Pakistan.

Features:

• Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 4400+(OC) MHz

• Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2

• Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

• Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost

• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.

• AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.

Specifications:

CPU
Chipset	AMD X570
CPU Socket	AM4
Back Panel I/O
USB	4 x USB 3.1 / USB 3.2 Gen 1 Type-A
	2 x USB 2.0 Type-A
	1 x USB 3.1 / USB 3.2 Gen 2 Type-A
	1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Thunderbolt	None
Display	1 x HDMI 1.4
Audio	5 x 3.5 mm
Audio	1 x S/PDIF
Ethernet / Controller	1 x Realtek 8111H Gigabit
PS/2	1 x PS/2
Buttons	BIOS Flashback
Memory
Memory Slots	4 x 288-Pin
Memory Support	DDR4 1866, 2133, 2400, 2666 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA	6 x SATA III
M.2	1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)
M.2	1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
U.2	None
RAID Support	RAID 0, 1, 10
Internal I/O
Expansion Slots	1 x PCIe 4.0 x16 (x16 mode)
	1 x PCIe 4.0 x16 (x4 mode)
	3 x PCIe 3.0 x1
USB	2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
USB	2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Ports)
Multi-GPU Support	2-Way AMD CrossFireX
Air Cooling	1 x 4-Pin CPU
Air Cooling	4 x 4-Pin System
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard
	1 x 8-Pin CPU
	1 x 4-Pin CPU
Security	Chassis Intrusion, TPM Module
LED Header	4 x RGB
Audio	None
Diagnostics	Clear CMOS
Legacy	1 x Serial
Front Panel I/O
I/O Connection Headers	AAFP
Audio
Audio Codec	Realtek ALC1220 (7.1-Channel)
Software
Supported Operating Systems	Windows 10 (64-Bit)
Physical
Form Factor	ATX
Dimensions	9.6 x 12" / 243.84 x 304.80 mm
