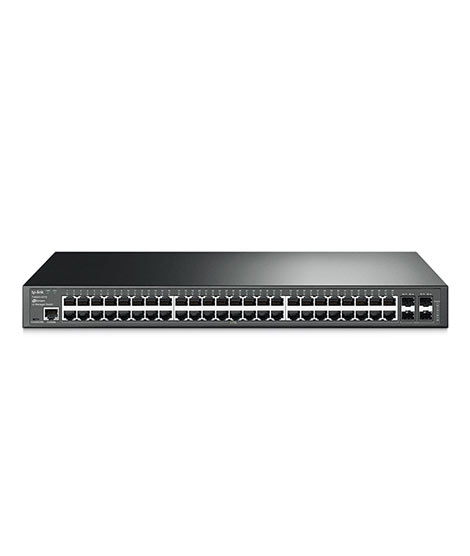

TP-Link JetStream 48-Port Gigabit L2 Managed Switch With 4 SFP Slots T2600G-52TS (TL-SG3452)

SKU : CDX1-0241-MP
Rs. 100,738

Get free returns on eligible items
Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home
Categories
Sale
My account
My cart

About this Item

iShopping.pk brings you the best price for TP-Link JetStream 48-Port Gigabit L2 Managed Switch With 4 SFP Slots T2600G-52TS (TL-SG3452) with express shipping all over Pakistan.





Gigabit Ethernet connections on all ports provide full speed of data transferring
L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
L2/L3/L4 QoS and IGMP snooping optimize voice and video application
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.



What This Product Does
TP-Link JetStream Gigabit L2 managed switch T2600G-52TS provides 48 10/100/1000Mbps ports and 4 Gigabit SFP Slots. The switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and other advanced security strategies. The IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2 Switch and gigabit capability, TP-Link JetStream 48-Port Gigabit L2 managed Switch T2600G-52TS provides you the ideal network solution.

Secure Networking
TP-Link JetStream L2 managed switch T2600G-52TS provides IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.

Advanced QoS features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.

Abundant L2 and L2+ features
T2600G-52TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance, such as Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T2600G-52TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

IPv6 Support
T2600G-52TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL*, DHCPv6 Snooping*, IPv6 Interface*, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which guarantees your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.

OAM*
The T2600G-52TS provides 802.3ah OAM and Device Link Detection Protocol (DLDP) functions improving monitor and troubleshoot Ethernet networks, help facilitate network management.
*This feature will be available in the latest firmware.

Enterprise Level Management Features
T2600G-52TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image,which provides reduced down-time for the switches.



Specifications:

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,

IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,

IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface

48 10/100/1000Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

4 1000Mbps SFP Slots

1 RJ45 Console Port

1 Micro-USB Console Port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable

(maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity

Fanless

Physical Security Lock

Yes

Power Supply

100~240VAC, 50/60Hz

Dimensions ( W x D x H )

17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm)

Mounting

Rack Mountable

Max Power Consumption

33.52W (220V/50Hz)

Max Heat Dissipation

114.37 BTU/h

PERFORMANCE



Bandwidth/Backplane

104Gbps

Packet Forwarding Rate

77.4Mpps

MAC Address Table

16k

Jumbo Frame

9216 Bytes

SOFTWARE FEATURES

Quality of Service

Support 802.1p CoS/DSCP priority

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

Voice VLAN

L2 and L2+ Features

Static Routing

DHCP Relay

IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

BPDU Filtering/Guard

TC/Root Protect

Loopback detection

802.3x Flow Control

L2PT

VLAN

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

Port/ MAC/Protocol-based/Private VLAN

GARP/GVRP

Access Control List

L2~L4 package filtering based on source and destination MAC address,

IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID

Time Range Based

Security

IP-MAC-Port-VID Binding

AAA*

802.1x and Radius Authentication

DoS Defend

Dynamic ARP inspection (DAI)

SSH v1/v2

SSL v3/TLSv1

Port Security

Broadcast/Multicast/Unknown-unicast Storm Control

IPv6



IPv6 Applications

DHCPv6 Client

Ping6

Tracert6

Telnet(v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http/Https

IPv6 TFTP

IPv6 ACL

IPv6 Interface

IPv6 Routing

DHCPv6 Snooping

Management

Web-based GUI and CLI management

SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs

RMON (1, 2, 3, 9 groups)

sFlow

PPPoE Circuit ID

DHCP Relay

DHCP Server

DHCP/BOOTP Client, DHCP Snooping, DHCP Option82

Dual Image

CPU Monitoring

Port Mirroring

Time Setting: SNTP

Firmware Upgrade: TFTP & Web

System Diagnose: VCT

SYSLOG & Public MIBS

Password Recovery

OTHERS

Certification

CE, FCC, RoHS

Package Contents

JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots T2600G-52TS

Power Cord

Installation Guide

Resource CD

Rackmount Kit

Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
