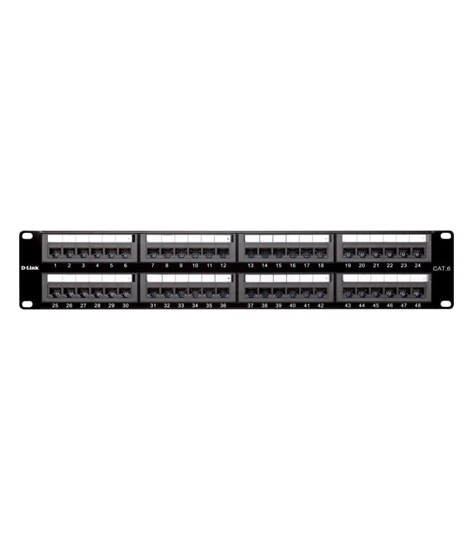

D-Link 48-Port Patch Panel Cat 6 UTP Fully Loaded (NPPC61BLK481)
Delivery & Return
Share
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
-
FREE RETURN
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country. -
COUNTRY-WIDE SHIPPING
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country. -
EXPRESS DELIVERY
Get your order to your doorstep within 24 hours through iShoppingʼs Express Delivery -
GUARANTEE SAFE CHECKOUT
About this Item
iShopping.pk brings you the best price for D-Link 48-Port Patch Panel Cat 6 UTP Fully Loaded (NPPC61BLK481) with express shipping all over Pakistan
Features:
• Cat6
• Fully Loaded
• Port
• 48 port
• Unshielded/Shilded
• RoHS/UL certified
• IDCs and RJ45 keystone jacks
• Mounts in standard 19 racks
• Hand screw, easy to open cover
• Jack shutter to keep dust away
• Eight port RJ45 modules applied
• Jack shutter to keep dust away
• Loaded/Unloaded/Fully Loaded
• IDC compatible with 110&Krone tool
• ID stripes for identifying port allocations
• Friendly installation, right angle between
• Panel: SECC, 1.2mm thickness with optional color painted
Identification:
• ID plate: PVC, Transparent color with paper
• ID Bracket: ABS+PC, UL 94V-0
RJ45 Jack:
• Housing: PBT+ Glass Fiber, UL94V-0
• Contact Bracket: PBT+ Glass Fiber, UL94V-0
• RJ45 Jack Contact:
• Material: Phosphor Bronze with Nickel plated
• Finish: 50 micro-inches Gold plated on plug contact area
• RJ45 Jack Shield: Bronze with Nickel plated
• Dust cover: PC, UL94V-2
IDC:
• Housing: PC+ Glass Fiber, UL 94V-2
• Terminal: phosphor Bronze with Tin Plated
• Ground wire: 18 AWG wire, with Green/Yellow striped color
• PCB: FR4, UL 94V-0
Performance
• T568A & T568B wiring scheme on PCB
• Insertion force: 30N max. (IEC 60603-7-5)
• Retention strength: 7.7 kg between jack and plug
• Operating temperature: -10C to 60C
• ( ISO/IEC 11801, ANSI/TIA/EIA 568B.2)
• Life ( mating cycles):
• Jack: 750 cycles min (ISO/IEC 11801, IEC 60603-7-5)
• IDC: suitable for 22-26 AWG stranded and solid wire,
• compatible with both 110& Krone punch down tools
• The Cat6 transmission performance is in compliance
Specification
