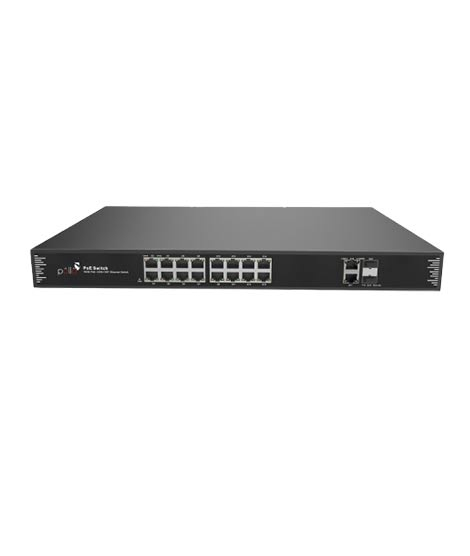

Pollo 16+2+2 Port Full Giga Network Switch (PLN-1116GB-SFP)
Delivery & Return
Share
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
-
FREE RETURN
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country. -
COUNTRY-WIDE SHIPPING
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country. -
EXPRESS DELIVERY
Get your order to your doorstep within 24 hours through iShoppingʼs Express Delivery -
GUARANTEE SAFE CHECKOUT
About this Item
Pollo Network Switch Delivered All Over Pakistan
iShopping.pk brings you the best price for Pollo 16+2+2 Port Full Giga Network Switch (PLN-1116GB-SFP) with express shipping all over Pakistan.
Specifications:
|
Model |
PLN-1116GB-SFP |
|
Fixed Port |
16*10/100/1000Base-T PoE ports (Data /Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000Base-X uplink SFP slot ports (Data) |
|
Ethernet Port |
Port 1-16 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters), 100BASE-TX: Cat5 or later UTP(≤100 meters), 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
SFP Slot Port |
Gigabit SFP optical fiber port, default no include optical modules (optional order single-mode/ multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode:850nm/ 0-500M, Single-mode:1310nm/ 0-40KM, 1550nm/ 0-120KM. |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
56Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
29.76Mpps |
|
MAC |
8K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
9.6K |
|
LED Indicator |
Power: PWR (Green), Network: Link, Link/Act (Yellow), PoE: PoE(Green), Fiber port: L/A (Green), Speed: SPD(Green) |
|
Reset Switch |
Yes, One-button factory reset |
|
PoE Port |
Port 1 to 16 |
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Total PWR / Input Voltage |
250W (AC100-240V) |
|
Power Consumption |
Standby<15W, Full Load<240W |
|
Power Supply |
Built-in power supply AC100~240V 50-60Hz 4.1A |
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
440*290*44.5mm |
|
Net /Gross Weight |
<3.3kg /<4.0kg |
Specification
