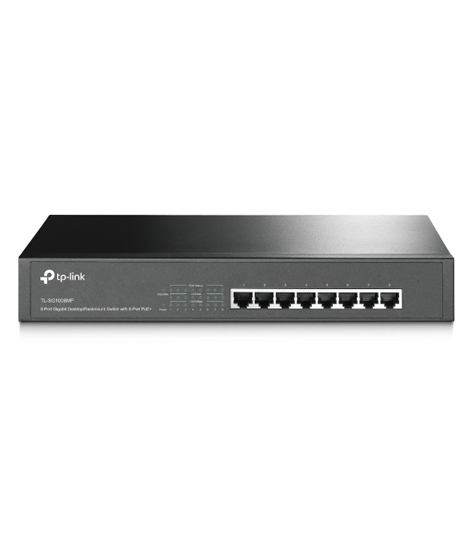

TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (TL-SG1008MP)

SKU : AND1-0598-MP

Rs. 23,500

Delivery & Return

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (TL-SG1008MP) with express shipping all over Pakistan.

How This Product Works

All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use

TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Specification:

HARDWARE FEATURES
Interface	8 10/100/1000Mbps RJ45 Ports
Interface	AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	EIA/TIA-568 100Ω STP (maximum 100m)
	100BASE-TX: UTP category 5, 5e cable (maximum 100m)
	EIA/TIA-568 100Ω STP (maximum 100m)
	1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
	EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	1-Jan-1900
Power Supply	100-240VAC, 50/60Hz
PoE+ Ports(RJ45)	Standard: 802.3at/af (30W)
	PoE+ Ports: 8 Ports
	Total PoE Budget: 126W
Backbound Bandwidth	16Gbps
Mac Address Table	4K
Buffer Size	1.5Mbits
Dimensions ( W x D x H )	11.6 × 7.1 × 1.7 in.
Dimensions ( W x D x H )	(294 × 180 × 44 mm)
Mounting	13" and 19" 1U rack mountable
Max Power Consumption	9.9W(no PD load)
Max Power Consumption	144.4W(with 124W PD load)
Max Heat Dissipation	33.7BTU/h(no PD load)
Max Heat Dissipation	492.6BTU/h(with 124W PD load)
SOFTWARE FEATURES
Advanced Features	Compatible With IEEE 802.3af/at Compliant power devices (PD)
	Port Priority Function
	MAC Address Auto-Learning And Auto-Aging
	IEEE802.3x Flow Control
Transfer Method	Store-And-Forward
OTHERS
Certification	FCC, RoHS
Package Contents	TL-SG1008MP
	Power Cord
	Installation Guide
	Rackmount Kit
	Rubber Feet
Consumption	9.5 watts (max. no PD connected)
Consumption	140.1 watts (max. with 126w PD connected)
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing

What This Product Does

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
