About this Item

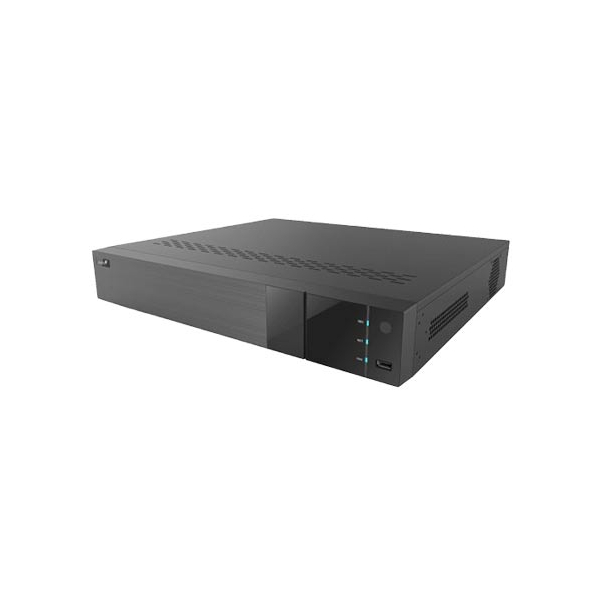

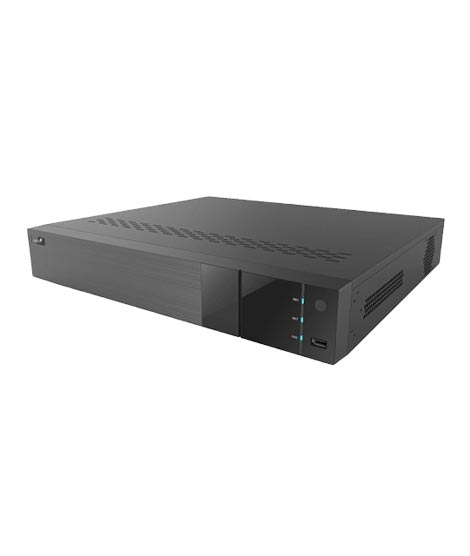

Pollo 32 Channel DVR Delivered All Over Pakistan
iShopping.pk brings you the best price for Pollo 32 Channel DVR (PLC-1532H4/PM) with express shipping all over Pakistan.
Specifications:
|
Model |
PLC-1532H4/PM |
|
System OS |
Embedded Linux |
|
Analog Video Input |
BNC × 32 BNC interface (1.0Vp-p; 75Ω) TVI/AHD/CVI : 5MP@20fps; 4MP/3MP/1080P/720P/WD1@25fps/30fps (live) |
|
IP Video Input |
8CH (up to 24CH) Up to 5MP@30fps |
|
Total Input |
40CH |
|
Output |
HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) |
|
Video Compression |
H.264/H.265/H.265+ |
|
Multi-screen Display |
1/4/6/8/9/13/16/25/32/36 |
|
Audio Input |
RCA × 16 |
|
Audio Output |
RCA × 1 (linear, 600Ω) |
|
Two-way audio |
Take up channel one audio input |
|
Compression |
G.711(U/A) |
|
Resolution |
5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1 |
|
Frame Rate |
Analog Channel: 5MP Lite@10fps (PAL / NTSC); 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC); 1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) |
|
Bit Rate |
32Kbps ~ 5Mbps |
|
Playback |
16CH |
|
Search |
Time slice / time / event / tag /smart search |
|
Smart Search |
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
|
Mode |
Manual, motion, exception, sensor, smart event |
|
Alarm Input |
16CH |
|
Alarm Output |
4CH |
|
Smart Motion Detection Performance |
16CH |
|
Perimeter Protection Performance |
1CH |
|
Interface |
RJ 45 1000Mbps × 1 |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP, etc. |
|
Incoming Bandwidth |
40Mbps |
|
Outgoing Bandwidth |
160Mbps |
|
Client Connection |
Max. 15users access |
|
OS |
iOS, Android |
|
HDD |
SATA×4, up to 10TB per HDD; E-SATA×1 |
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
|
RS 485 |
Yes (full-duplex), connect to PTZ or keyboard |
|
USB |
USB 2.0 × 1; USB 3.0 × 1 |
|
Remote Controller |
Optional |
|
Power Supply |
ATX-250W |
|
Consumption |
≤ 30W (without HDD) |
|
Dimensions(mm) |
440 × 390 × 70 ( W × D × H ) |
|
Working Environment |
10~50°C, 10%~90% (humidity) |
Specification
