About this Item
Ubiquiti AC Sector Antenna Delivered All Over Pakistan
iShopping.pk brings you the best price for Ubiquiti Air Max 2x2 MIMO Base Station AC Sector Antenna (AM-5AC21-60) with express shipping all over Pakistan.
Details:

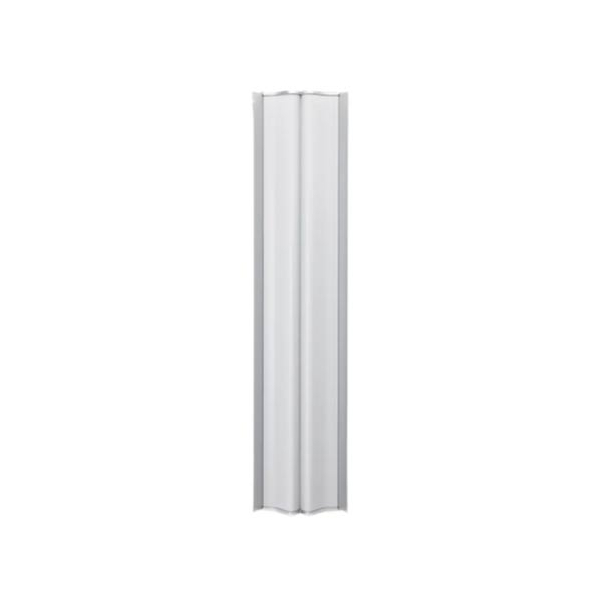

The 5 GHz airMAX ac Sector AM-5AC21-60 2 x 2 MIMO BaseStation Sector Antenna from Ubiquiti Networks is designed to assist in the creation of powerful point-to-point (PtP) backhaul links and point-to-multipoint (PtMP) airMAX links when paired with the RocketM5 / M5 ac BaseStation (sold separately). However, it provides optimal performance with the RocketM5 ac BaseStation. The antenna features a built-in Rocket mount, eliminating the need for additional tools when installing the base. By pairing the sector antennas with the RocketM5 / M5 ac BaseStation you can fully utilize Ubiquiti's airMAX technology. This antenna is highly resistant to noise interference in co-location deployments. The deflector-designed antenna with reduced side lobes and back lobes reject interference from other transmitters in the area, as well as on the same tower. It provides excellent gain and beam performance for high-capacity, multi-point networks.
• Carrier-class construction and 2 x 2 dual-polarity performance
• Provides sector-wide coverage and utilizes airMAX technology
• Features reduced sidelobes and backlobes that reject noise interference in co-location deployments
• Improved signal-to-noise ratio (SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM
• Increased number of bits per second for a fixed bandwidth (or data rate)
• High resistance to noise interference provides excellent gain and beam performance for high-capacity, multi-point networks
• Robust design for outdoor applications

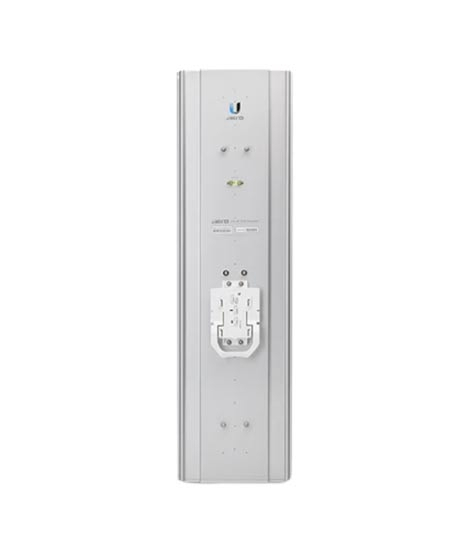

• Provision of Rocket mount allows for tool-free installation of Rocket BaseStation
Specification:
|
Frequency Range |
5.10 to 5.85 GHz |
|
Gain |
21 dBi |
|
Hpol Beamwidth |
60° (6 dBi) |
|
Vpol Beamwidth |
60° (6 dBi) |
|
Beamwidth |
Electrical: 4° |
|
Electrical Downtilt |
2° |
|
VSWR |
1.5:1 (maximum) |
|
Wind Survivability |
125 mph (200 kph) |
|
Wind Loading |
88 lbf @ 125 mph (391 N @ 200 kph) |
|
Polarization |
Dual-linear |
|
Cross-Polarity Isolation |
25 dB minimum |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |
Universal pole mount, Rocket bracket, and weatherproof RF jumpers (included) |
|
Dimensions |
29.5 x 6.8 x 3.1" (75.0 x 17.3 x 7.8 cm) excluding pole mount and Rocket radio (not included) |
